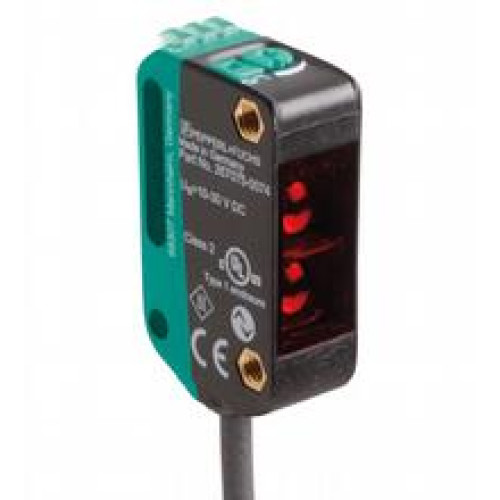

OBR7500-R100-2EP1-IO-0.3M-V31

Retroreflective sensor - Effective detection range: 0 ... 7.5 m, Light source: LED, Light type: modulated visible red light, Signa

Manufacturer's No: 267075-100488     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 7.5 m, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, re..

Availability On Request

POA
  • Detection Range: 0 to 7.5 m
  • Light Source: LED, modulated visible red light
  • Signal Output: 2 push-pull outputs (4 in 1), short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link via C/Q (pin 4)
  • Switching Type: Adjustable with default settings for NPN normally closed/light-on and PNP normally open/dark-on
  • Connection: Fixed cable 300 mm with M8 x 1 male connector (4-pin)
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -25 to 60 °C (-13 to 140 °F)
  • Not suitable for use with conveyor chains


Product

Manufacturer Material ID -
267075-100488
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

POA
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
