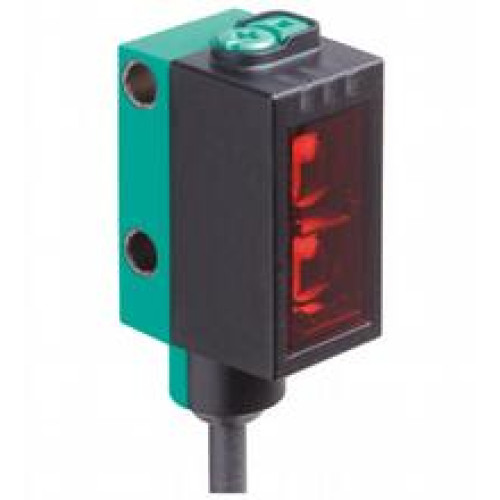

OBR7500-R101-EP-IO-0.3M-V3

Retroreflective sensor - Effective detection range: 0 ... 7.5 m, Light source: LED, Light type: modulated visible red light, Signa

Manufacturer's No: 267075-100021     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 7.5 m, Light source: LED, Light type: modulated visible red light, Signal output: 1 push-pull (4 in 1) output, short-circuit protected, rev..

Availability On Request

£82.74
  • Detection Range: 0 to 7.5 m
  • Light Source: LED, Light Type: Modulated visible red light
  • Signal Output: 1 push-pull (4 in 1) output, short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link (via C/Q = pin 4)
  • Switching Type: Adjustable, default setting: NPN normally open/dark-on, PNP normally closed/light-on
  • Connection: 300 mm fixed cable with M8 x 1, 3-pin connector
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -25 to 60 °C (-13 to 140 °F)
  • Not suitable for use with conveyor chains


Product

Manufacturer Material ID -
267075-100021
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£82.74
