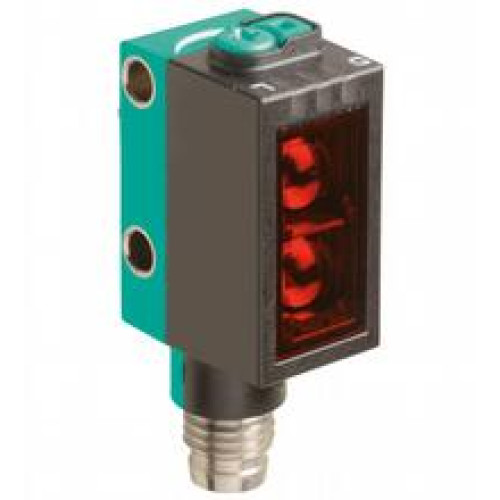

OBR7500-R101-EP-IO-V3

Retroreflective sensor - Effective detection range: 0 ... 7.5 m, Light source: LED, Light type: modulated visible red light, Signa

Manufacturer's No: 267075-100023     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 7.5 m, Light source: LED, Light type: modulated visible red light, Signal output: 1 push-pull (4 in 1) output, short-circuit protected, rev..

Availability On Request

£76.64
  • Detection Range: 0 to 7.5 meters
  • Light Source: LED with modulated visible red light
  • Signal Output: 1 push-pull (4 in 1) output, short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link via C/Q on pin 4
  • Switching Type: Adjustable with default settings as NPN normally open/dark-on and PNP normally closed/light-on
  • Connection: M8 x 1 connector, 3-pin
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60°C (-40 to 140°F)


Product

Manufacturer Material ID -
267075-100023
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£76.64
