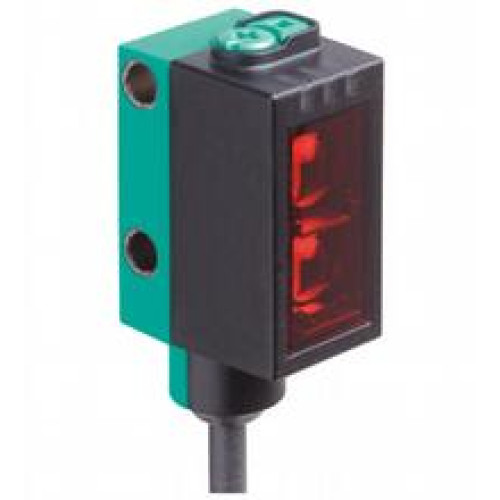

OBT150-R101-2EP1-IO-0.3M-V1

Triangulation sensor - Detection range: 5 ... 150 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2

Manufacturer's No: 267075-100525     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 5 ... 150 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polar..

Availability On Request

POA
  • Detection Range: 5 - 150 mm
  • Light Source: LED, Light Type: Modulated visible red light
  • Signal Output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link via C/Q = pin 4
  • Switching Type: Adjustable with default settings for NPN normally closed / dark-on, PNP normally open / light-on
  • Connection: 300 mm fixed cable with M12 x 1, 4-pin connector
  • Operating Voltage: 10 - 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -25 to 60 °C (-13 to 140 °F), movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
267075-100525
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

POA
