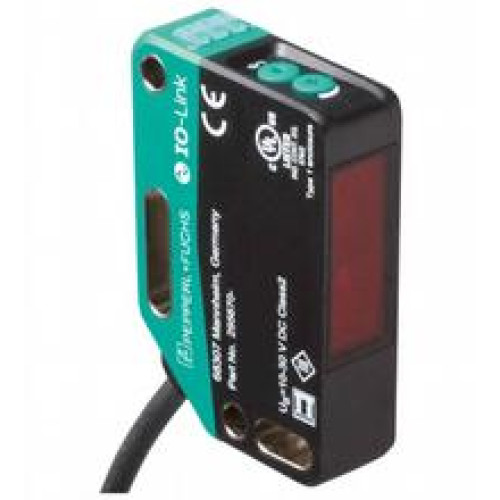

OBT200-R201-E5F-0.3M-V1-Y0397

Triangulation sensor - Detection range: 10 ... 650 mm preset on 200 ... mm, Light source: LED, Light type: modulated visible red l

Manufacturer's No: 295670-100397     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 10 ... 650 mm preset on 200 ... mm, Light source: LED, Light type: modulated visible red light, Signal output: 2 PNP outputs, short-circuit-proof, reverse po..

Availability Back Order

£138.94
  • Detection range: 10-650 mm (preset at 200 mm)
  • Light source: LED, Light type: modulated visible red light
  • Signal output: 2 PNP outputs, short-circuit-proof, reverse polarity protection, surge-proof
  • Switching type: Adjustable, default setting: Q - Pin4: PNP normally open / light-on, Alarm output - Pin2: PNP normally open / light-on detected when soiled
  • Connection: 300 mm fixed cable with M12 x 1, 4-pin connector
  • Operating voltage: 10-30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F) fixed cable, -20 to 60 °C (-4 to 140 °F) movable cable (not suitable for conveyor chains)

Accessories



Product

Manufacturer Material ID -
295670-100397
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£138.94
