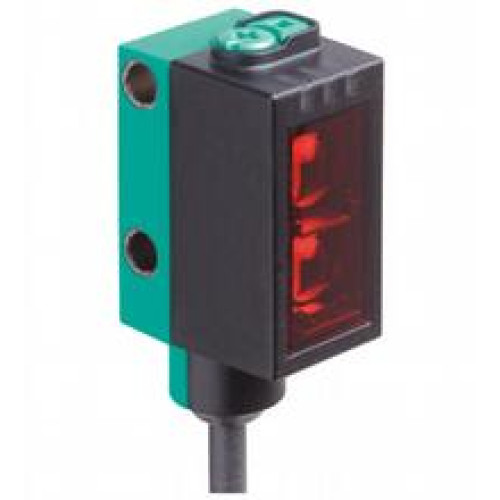

OBT300-R101-EP-IO-0.3M-V3-L

Triangulation sensor - Detection range: 7 ... 300 mm, Light source: laser diode, Light type: modulated visible red light, Signal o

Manufacturer's No: 267075-0105     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 7 ... 300 mm, Light source: laser diode, Light type: modulated visible red light, Signal output: 1 push-pull (4 in 1) output, short-circuit protected, revers..

Availability On Request

£156.93
  • Detection range: 7 to 300 mm
  • Light source: Laser diode
  • Light type: Modulated visible red light
  • Signal output: 1 push-pull (4 in 1) output, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C/Q = pin 4
  • Switching type: Adjustable with default setting as NPN normally open / light-on and PNP normally closed / dark-on
  • Connection: 300 mm fixed cable with M8 x 1, 3-pin connector
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F) for fixed cable, -25 to 60 °C (-13 to 140 °F) for movable cable (not suitable for conveyor chains)


Product

Manufacturer Material ID -
267075-0105
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926
