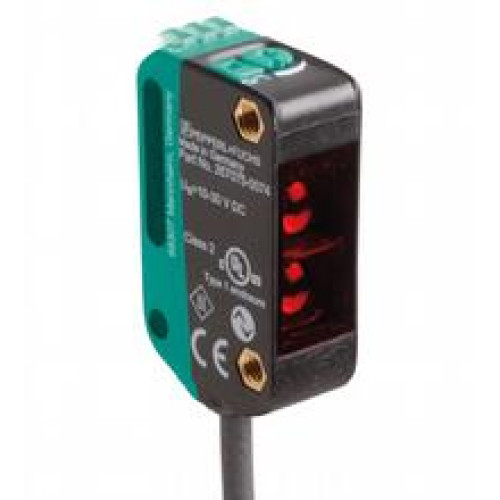

OBT350-R100-2EP-IO-1T

Triangulation sensor - Detection range: 5 ... 350 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2

Manufacturer's No: 267075-0078     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 5 ... 350 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polar..

Availability On Request

£104.61
  • Detection Range: 5 to 350 mm
  • Light Source: LED, Light Type: Modulated visible red light
  • Signal Output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link (via C/Q = BK)
  • Switching Type: Adjustable with default settings as NPN normally open/dark-on for C/Q - BK and PNP normally closed/light-on for IO-Link/Q - WH
  • Connection: 2 m fixed cable
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F) for fixed cable, -25 to 60 °C (-13 to 140 °F) for movable cable (not suitable for conveyor chains)


Product

Manufacturer Material ID -
267075-0078
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£104.61
