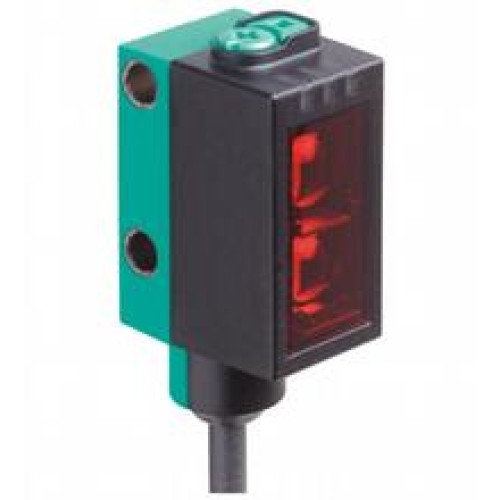

OBT350-R101-2EP-IO-0.3M-V1-1T

Triangulation sensor - Detection range: 5 ... 350 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2

Manufacturer's No: 267075-0103     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 5 ... 350 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polar..

Availability On Request

£110.70
  • Detection Range: 5 to 350 mm
  • Light Source: LED, Light Type: Modulated visible red light
  • Signal Output: 2 push-pull outputs (4 in 1), short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link via C/Q on pin 4
  • Switching Type: Adjustable, default setting: C/Q - Pin4: NPN normally open/dark-on, PNP normally closed/light-on, IO-Link/Q - Pin2: NPN normally closed/light-on, PNP normally open/dark-on
  • Connection: 300 mm fixed cable with M12 x 1, 4-pin connector
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -25 to 60 °C (-13 to 140 °F), movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
267075-0103
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£110.70
