OBT650-R200-2EP-IO-0.3M-V31

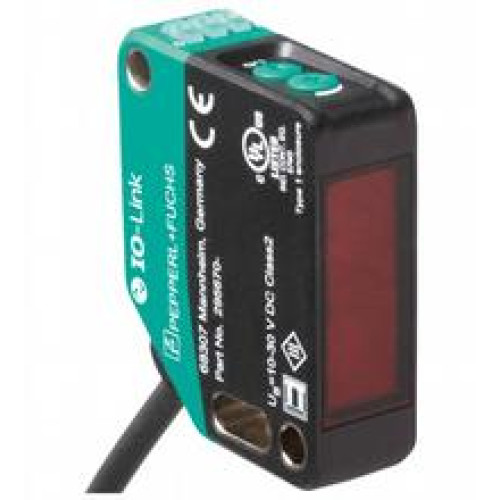

Triangulation sensor - Detection range: 10 ... 650 mm, Light source: LED, Light type: modulated visible red light, Signal output:

Manufacturer's No: 295670-100110     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 10 ... 650 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse pola..

Availability On Request

POA
  • Detection Range: 10 to 650 mm
  • Light Source: LED, Light Type: Modulated visible red light
  • Signal Output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link via C/Q = pin 4
  • Switching Type: Adjustable with default settings for NPN normally open / light-on and PNP normally closed / dark-on
  • Connection: Fixed cable 300 mm with M8 x 1 male connector; 4-pin
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -20 to 60 °C (-4 to 140 °F)
  • Note: Movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
295670-100110
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
