OBT650-R200-EP-IO-0.3M-V3-1T

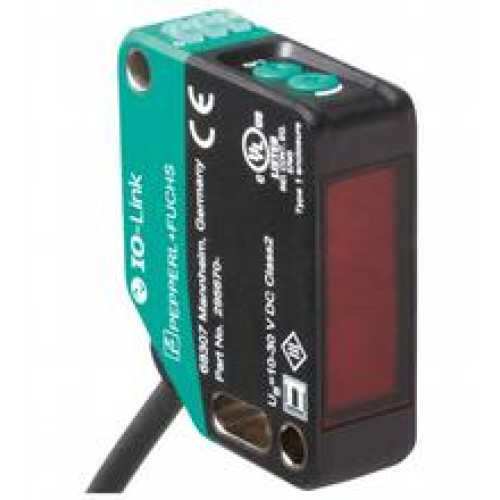

Triangulation sensor - Detection range: 10 ... 650 mm, Light source: LED, Light type: modulated visible red light, Signal output:

Manufacturer's No: 295670-100115     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 10 ... 650 mm, Light source: LED, Light type: modulated visible red light, Signal output: 1 push-pull (4 in 1) output, short-circuit protected, reverse polar..

Availability On Request

POA
  • Detection range: 10 to 650 mm
  • Light source: LED, modulated visible red light
  • Signal output: 1 push-pull (4 in 1) output, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C/Q = pin 4
  • Switching type: Adjustable, default setting: NPN normally open/dark-on, PNP normally closed/light-on
  • Connection: 300 mm fixed cable with M8 x 1, 3-pin connector
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -20 to 60 °C (-4 to 140 °F), movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
295670-100115
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

POA
