50127853

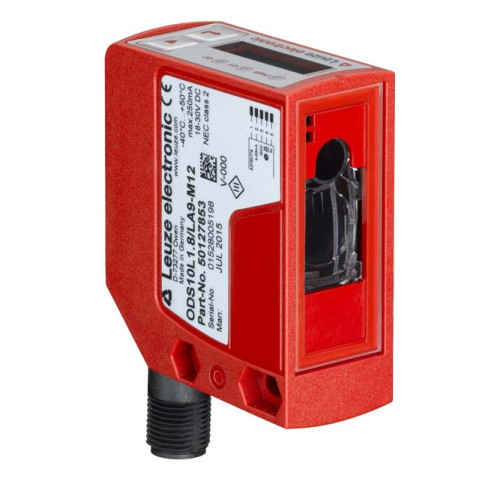

The Optical distance sensor from . Scanning system: Against object; Light source: Laser, Red; Light spot size: 7 mm x 7 mm; Measur

Manufacturer's No: ODS10L1.8/LAK-M12     Manufacturer: Leuze
The Optical distance sensor from . Scanning system: Against object; Light source: Laser, Red; Light spot size: 7 mm x 7 mm; Measurement range: 50 ... 8.000 mm; Geometric resolution: 1.0 mm; Supply v

Availability In Stock

£583.00
  • Scanning system: Against object
  • Special version: Deactivation input, Activation input, Teach input
  • Light source: Laser, Red
  • Light spot size: 7 mm x 7 mm
  • Measurement range: 50
  • 3,500 mm (6
  • 90% diffuse reflection), 50
  • 8,000 mm
  • Geometric resolution: 1.0 mm
  • Supply voltage: 18

Read more

  • 30 V DC
  • Digital switching inputs: 1 piece
  • Analog outputs: 1 piece
  • Digital switching outputs: 1 piece
  • Output: Configurable, factory setting
  • current
  • Interface: IO-Link
  • Connection: Connector, M12, 5-pin, Turning, 90°
  • Dimensions: 25 mm x 65 mm x 55 mm
  • Operational controls: Control buttons, PC software

Accessories



Product

Manufacturer Material ID -
ODS10L1.8/LAK-M12
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
90318020
Country of Origin -
DE
UNSPSC -
41112400

Technical Specification

Max. output current -
- Milliampere
Material housing -
UN
Switching frequency -
- Hertz
Signalling interval -
- Hertz
Geometrical resolution -
- Millimetre
Standard for interfaces -
UN
Light dot -
- Square millimetre
Relative linearity deflection -
- Percentage
Relative accuracy of measurement -
- Percentage
Relative repeat accuracy -
- Percentage
AWG-number -
-
Diameter sensor -
- Millimetre
Measuring range length -
- Millimetre
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
65 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
55 Millimetre
Material of cable sheath -
Other
Material of optical surface -
Glass
Measuring principle for optical distance measurement -
Other
Operation agent-safety class -
Safety class 3
Scanning principle -
Push button
Sensing mode -
Light-/dark switching
Setting procedure -
Manual adjustment
Supply voltage -
18 Volt
Type of analogy output -
0 mA ... 20 mA / 4 mA ... 20 mA
Type of electric connection -
Connector M12
Type of light -
Laser diode, red light
Type of switch function -
Anticoincidence
Type of switching output -
PNP/NPN
Voltage type -
DC
Width sensor -
25 Millimetre
