50106735

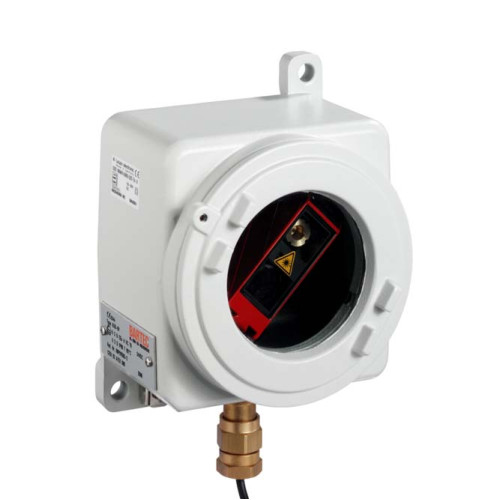

The Optical distance sensor from . Scanning system: Against object; Light source: Laser, Red; Light spot size: 2 mm x 6 mm; Measur

Manufacturer's No: ODSL 96B M/C6-2000 Ex d     Manufacturer: Leuze
The Optical distance sensor from . Scanning system: Against object; Light source: Laser, Red; Light spot size: 2 mm x 6 mm; Measurement range: 150 ... 2.000 mm; Geometric resolution: 1.0 ... 3.0 mm;

Availability Back Order

£2,493.00
  • Scanning system: Against object
  • Special version: Ex-protected
  • Light source: Laser, Red
  • Measurement range: 150 - 2,000 mm
  • Light spot size: 2 mm x 6 mm
  • Geometric resolution: 1.0 - 3.0 mm
  • Accuracy: 1.5%
  • Supply voltage: 18 - 30 V, DC
  • Analog outputs: 1 Piece
  • Digital switching inputs: 1 Piece

Read more

  • Digital switching outputs: 1 Piece
  • Output: Current
  • Connection: Cable, 15,000 mm, 5-wire
  • Dimensions: 150 mm x 150 mm x 124 mm
  • Operational controls: Membrane keyboard, PC software
  • Ex device category: 2D, 2G

Accessories



Product

Manufacturer Material ID -
ODSL 96B M/C6-2000 Ex d
Net Weight -
3.94kg

Additional Product Information

Commodity Code -
90318020
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Max. output current -
- Milliampere
Material housing -
UN
Switching frequency -
- Hertz
Signalling interval -
- Hertz
Geometrical resolution -
- Millimetre
Standard for interfaces -
UN
Light dot -
- Square millimetre
Relative linearity deflection -
- Percentage
AWG-number -
-
Diameter sensor -
- Millimetre
Sensing mode -
UN
Measuring range length -
- Millimetre
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 2D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 2G
Height of sensor -
150 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
124 Millimetre
Material of cable sheath -
Other
Material of optical surface -
Glass
Measuring principle for optical distance measurement -
Triangulation
Operation agent-safety class -
Safety class 2
Relative accuracy of measurement -
1.5 Percentage
Relative repeat accuracy -
0.5 Percentage
Scanning principle -
Push button
Setting procedure -
Manual adjustment
Supply voltage -
18 Volt
Type of analogy output -
0 mA ... 20 mA / 4 mA ... 20 mA
Type of electric connection -
Cable
Type of light -
Laser diode, red light
Type of switch function -
Anticoincidence
Type of switching output -
PNP/NPN
Voltage type -
DC
Width sensor -
150 Millimetre
Leuze

Availability Back Order

£2,493.00
