7TCA091160R0199

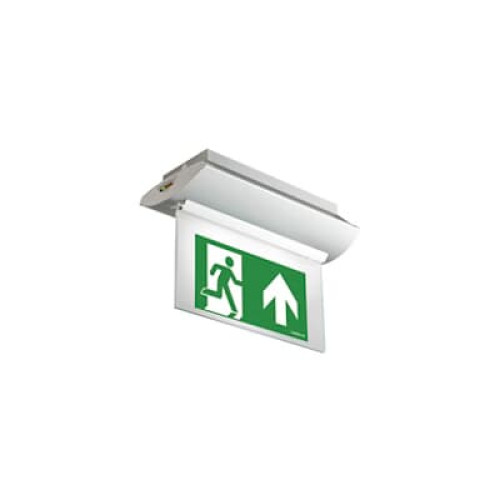

HORIZON LEDS EDGE SIGN M3

Manufacturer's No: OHD3LS61     Manufacturer: ABB
HORIZON LEDS EDGE SIGN M3

Availability Back Order

£352.12
  • Model: HORIZON LEDS EDGE SIGN M3
  • Type: Horizon Edge-Lit LED Exit Sign
  • Power Supply: 220-240V AC, 50Hz
  • Light Source: 2 LED, 2W
  • Operating Temperature: 0-25°C


Product

Manufacturer Material ID -
OHD3LS61
Net Weight -
1.30kg

Additional Product Information

Commodity Code -
9405490000
Country of Origin -
GB
Minimum Order Quantity -
1
UNSPSC -
39101600

Technical Specification

Lamp included -
Battery chemistry -
NiCd
Colour temperature -
6350 Kelvin
Control gear -
LED driver constant current
Cover material -
Plastic transparent
Degree of protection (IP rating) -
IP40
Function -
Escape route signage
Height/depth -
82 Millimetre
Housing colour -
White
Housing material -
Aluminium
Labelling type -
Acrylic plate
Length -
364 Millimetre
Light distribution -
Diffuser
Light source included -
Light source type -
LED non-replaceable
Maximum system power -
5.1 Watt
Monitoring equipment -
Automatic self test
Mounting method -
Ceiling surface mounting
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of lighting heads -
1
Power factor -
0.52
Power supply system -
Peripheral (individual battery)
Protection class -
II
Rated ambient temperature acc. IEC62722-2-1 -
0 Degrees celsius
Type of cabling -
Ending
Type of indicator -
Single/double-sided
Viewing distance -
25 Metre
Voltage type -
AC
Width -
167 Millimetre
With remote switch connection -
ABB

Availability Back Order

£352.12
