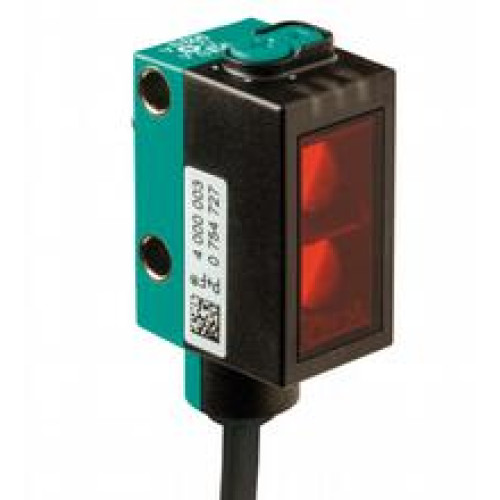

OMT200-R101-2EP-IO-0.3M-V1

Distance sensor - Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-c

Manufacturer's No: 267075-100209     Manufacturer: Pepperl+Fuchs
Distance sensor - Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected..

Availability Back Order

£287.45
  • Light source: LED
  • Light type: Modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C/Q on pin 4
  • Switching type: Default setting - C/Q Pin4: NPN normally open, PNP normally closed; IO-Link Q2 Pin2: NPN normally open, PNP normally closed
  • Connection: 300 mm fixed cable with M12 x 1, 4-pin connector
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: 10 to 60 °C (50 to 140 °F)

Accessories



Product

Manufacturer Material ID -
267075-100209
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
90151000
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£287.45
