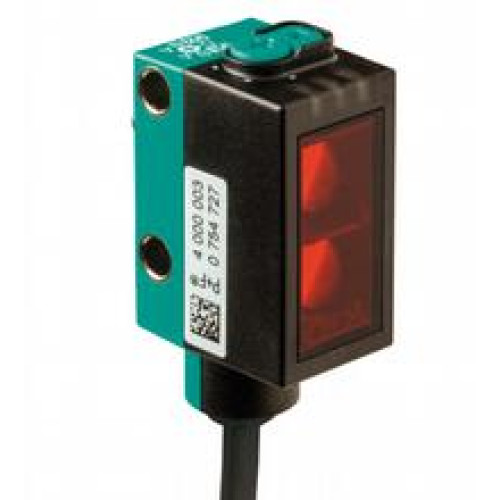

OQT150-R101-2EP-IO-0.3M-V1

Triangulation sensor - Detection range: 5 ... 150 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2

Manufacturer's No: 267075-100164     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 5 ... 150 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polar..

Availability On Request

£135.05
  • Detection range: 5 to 150 mm
  • Light source: LED with modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C/Q on pin 4
  • Switching type: Default setting - C/Q Pin4: NPN normally open, PNP normally closed
  • Connection: 300 mm fixed cable with M12 x 1, 4-pin connector
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -25 to 60 °C (-13 to 140 °F), not suitable for conveyor chains


Product

Manufacturer Material ID -
267075-100164
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£135.05
