2TLA022302R0300

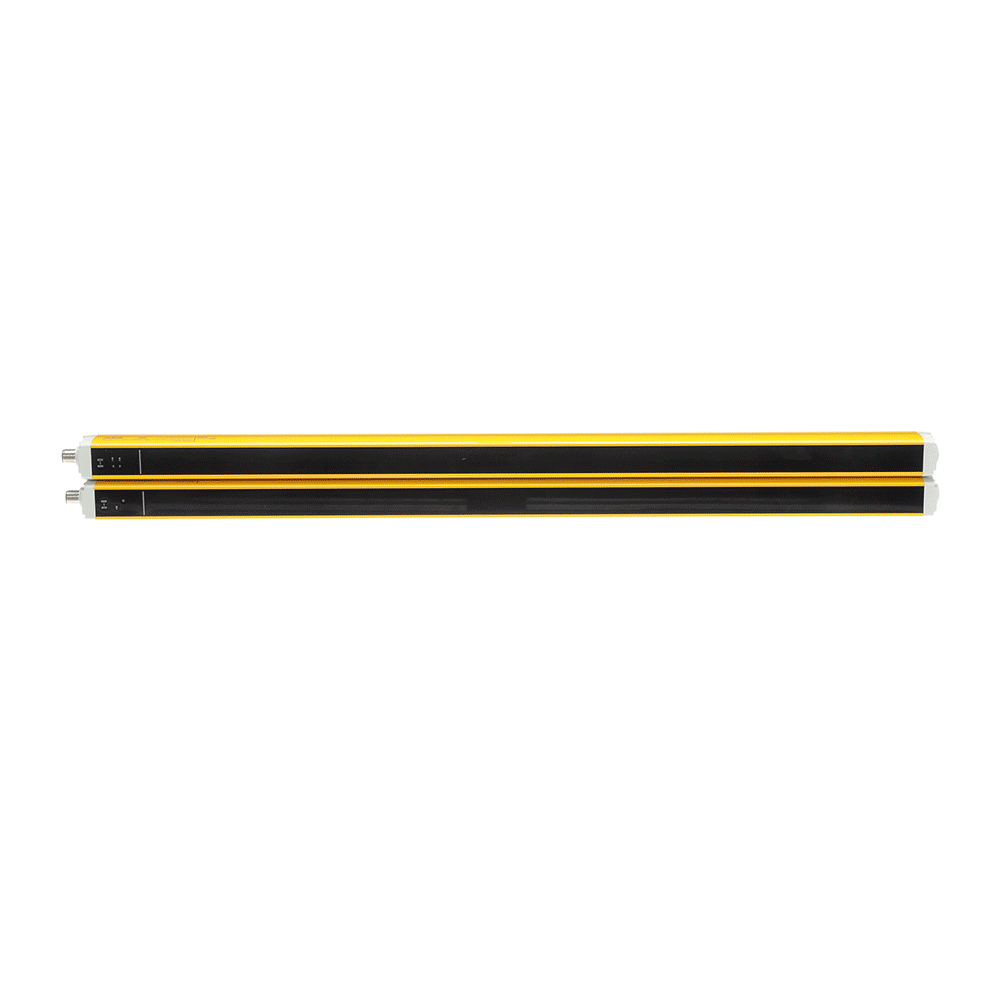

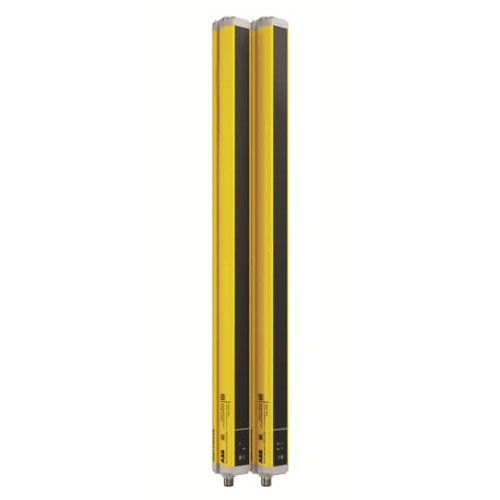

Orion1-4-30-060-B Safety light curtain

Manufacturer's No: ORION1-4-30-060-B     Manufacturer: ABB
Orion1-4-30-060-B Safety light curtain

Availability Back Order

£1,064.64
  • Orion1-4-30-060-B Safety light curtain
  • Orion1 Base Light Curtain
  • Resolution: 30mm (hand)
  • Protected height: 600mm
  • Range: 0.2-19m
  • Type 4
  • Compact dimensions
  • Two resolutions for finger and hand detection
  • Ideal for machines requiring repeated access
  • Can limit work zones in hazardous areas

Read more

  • Can be mounted horizontally for area protection


Product

Manufacturer Material ID -
ORION1-4-30-060-B
Net Weight -
1.00kg

Additional Product Information

Commodity Code -
9031499000
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Degree of protection (IP) -
UN
Degree of protection (NEMA) -
UN
Rated control supply voltage Us at DC -
24 Volt
Detection power for test bodies -
30 Millimetre
Time of reaction -
14 Millisecond
Ambient temperature -
0 Degrees celsius
Degree of protection (IP rating) -
IP65
Detection capability for test bodies -
30 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
6.4 Millimetre
Length of sensor -
36.9 Millimetre
Max. output current at protected output -
500 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
2
Number of semiconductor outputs with signalling function -
0
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
0 Volt
Reaction time -
14 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
600 Millimetre
Scope of delivery of the one-way system -
Transmitter and receiver
Suitable for safety functions -
Switching voltage of OSSD at state "high" -
24 Volt
Transmission range of the safety field -
19 Metre
Type of electric connection -
Connector M12
Type of interface for safety communication -
Other
Type of safety acc. IEC 61496-1 -
4
Type of switching output of the OSSD -
PNP
Voltage type -
DC
Wavelength of the sensor -
950 Nanometre
Width sensor -
32.3 Millimetre
With monitoring function downstream switching devices -
With restart blockage -
ABB

Availability Back Order

£1,064.64
