2TLA022303R0900

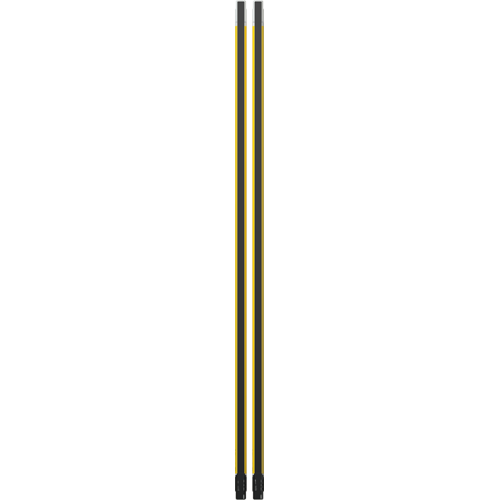

Orion1-4-30-150-E Safety light curtain

Manufacturer's No: ORION1-4-30-150-E     Manufacturer: ABB
Orion1-4-30-150-E Safety light curtain

Availability On Request

£2,477.78
  • Product: Orion1-4-30-150-E Safety Light Curtain
  • Type: Orion1 Extended Light Curtain
  • Configuration: Transmitter + Receiver
  • Resolution: 30mm for hand detection
  • Protected Height: 1500mm
  • Range: 0.2-20m
  • Advanced Features: Cascading, muting, blanking
  • Application: Ideal for machines requiring repeated access in hazardous zones
  • Compact dimensions for easy installation
  • Suitable for manually serviced machines


Product

Manufacturer Material ID -
ORION1-4-30-150-E
Net Weight -
4.00kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Degree of protection (IP) -
UN
Degree of protection (NEMA) -
UN
Rated control supply voltage Us at DC -
24 Volt
Detection power for test bodies -
30 Millimetre
Time of reaction -
20 Millisecond
Ambient temperature -
0 Degrees celsius
Cascadable -
Degree of protection (IP rating) -
IP65
Detection capability for test bodies -
30 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Fade-out possible -
Height of sensor -
6.4 Millimetre
Length of sensor -
40.8 Millimetre
Max. output current at protected output -
500 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
2
Number of semiconductor outputs with signalling function -
0
Operation agent-safety class -
Safety class 3
Override possible -
Rated control supply voltage at DC -
0 Volt
Reaction time -
20 Millisecond
Reduced resolution -
Resolution of the light curtain -
30 Millimetre
Safety field height -
1500 Millimetre
Scope of delivery of the one-way system -
Transmitter and receiver
Suitable for safety functions -
Switching voltage of OSSD at state "high" -
24 Volt
Transmission range of the safety field -
20 Metre
Type of electric connection -
Connector M12
Type of interface for safety communication -
Other
Type of safety acc. IEC 61496-1 -
4
Type of switching output of the OSSD -
PNP
Voltage type -
DC
Wavelength of the sensor -
950 Nanometre
Width sensor -
35 Millimetre
With beam coding -
With monitoring function downstream switching devices -
With muting function -
With restart blockage -
