2TLA022306R0300

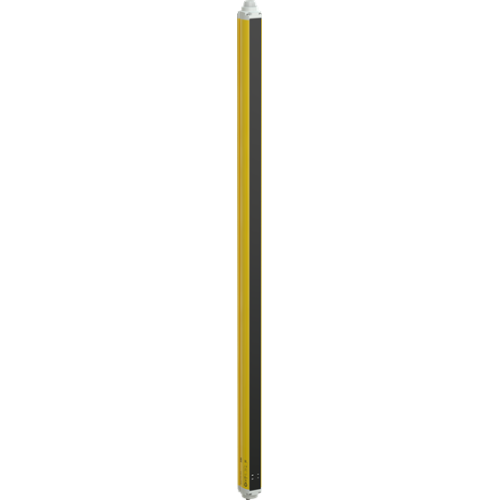

Orion3-4-K2C-120-B Safety light grid - Active part

Manufacturer's No: ORION3-4-K2C-120-B     Manufacturer: ABB
Orion3-4-K2C-120-B Safety light grid - Active part

Availability Back Order

£766.75
  • Product: Orion3-4-K2C-120-B Safety Light Grid
  • Type: Active part
  • Configuration: Orion3 Base Light Grids
  • Beams: 4
  • Protected Height: 1200mm
  • Range: 0.5-8m
  • Type 4 safety classification
  • Sturdy profile for access protection
  • Transmitter and receiver in the same active part
  • Passive part with mirrors to reflect beams

Read more

  • Intended for body detection
  • Operating range of up to 8m


Product

Manufacturer Material ID -
ORION3-4-K2C-120-B
Net Weight -
2.00kg

Additional Product Information

Commodity Code -
9031499000
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Degree of protection (IP) -
UN
Degree of protection (NEMA) -
UN
Rated control supply voltage Us at DC -
24 Volt
Detection power for test bodies -
400 Millimetre
Time of reaction -
12 Millisecond
Ambient temperature -
0 Degrees celsius
Degree of protection (IP rating) -
IP65
Detection capability for test bodies -
400 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
6.4 Millimetre
Length of sensor -
56.9 Millimetre
Max. output current at protected output -
500 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
2
Number of semiconductor outputs with signalling function -
0
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
0 Volt
Reaction time -
12 Millisecond
Resolution of the light curtain -
419.8 Millimetre
Safety field height -
1200 Millimetre
Scope of delivery of the one-way system -
Transmitter
Suitable for safety functions -
Switching voltage of OSSD at state "high" -
24 Volt
Transmission range of the safety field -
8 Metre
Type of electric connection -
Connector M12
Type of interface for safety communication -
Other
Type of safety acc. IEC 61496-1 -
4
Type of switching output of the OSSD -
PNP
Voltage type -
DC
Wavelength of the sensor -
950 Nanometre
Width sensor -
52 Millimetre
With monitoring function downstream switching devices -
With restart blockage -
