2TLA022306R1000

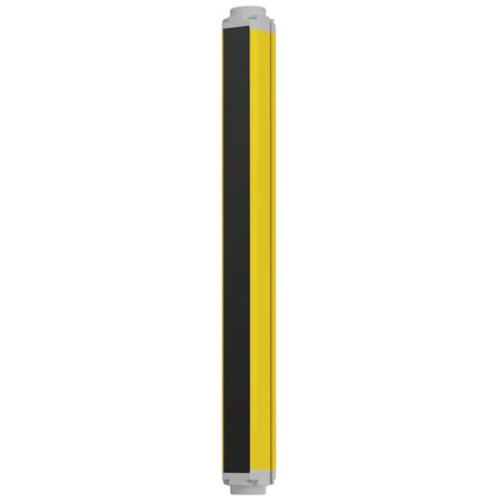

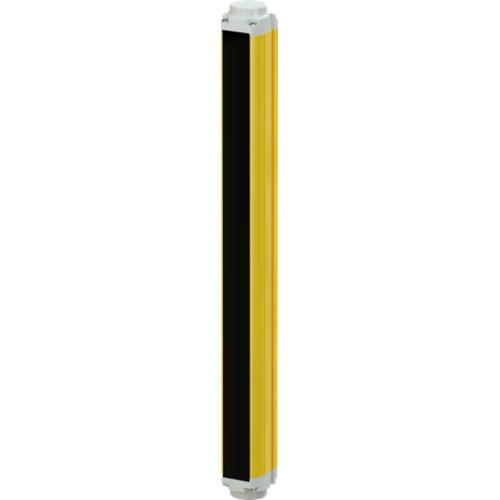

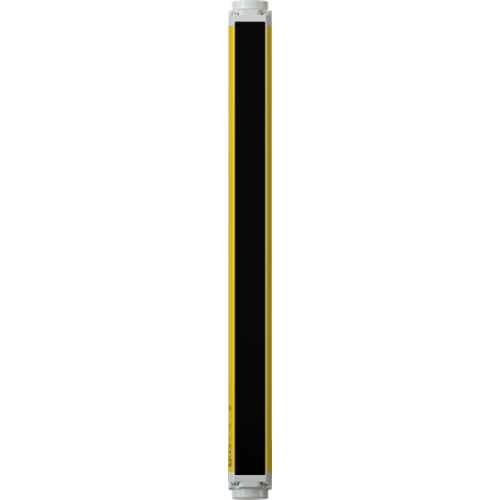

Orion3-4-M1C-050 Safety light grid - Passive part

Manufacturer's No: ORION3-4-M2C-050 -     Manufacturer: ABB
Orion3-4-M1C-050 Safety light grid - Passive part

Availability Back Order

£208.36
  • Orion3-4-M1C-050 Safety Light Grid
    • Passive unit with 2 beams
    • Protected height: 500mm
    • Operating range: up to 8 meters
    • Designed for body detection
  • Orion3 Base and Extended Light Grids
    • Sturdy profile for access protection
    • Transmitter and receiver in the same active part
    • Passive part with mirrors to reflect beams
  • Only one part requires power supply


Product

Manufacturer Material ID -
ORION3-4-M2C-050 -
Net Weight -
1.20kg

Additional Product Information

Commodity Code -
9031499000
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
39121527

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Operation agent-safety class -
UN
Max. output current at protected output -
- Milliampere
Time of reaction -
- Millisecond
Switching voltage of OSSD at state "high" -
- Volt
Degree of protection (IP) -
UN
Degree of protection (NEMA) -
UN
Rated control supply voltage Us at DC -
24 Volt
Detection power for test bodies -
500 Millimetre
Ambient temperature -
0 Degrees celsius
Degree of protection (IP rating) -
IP65
Detection capability for test bodies -
500 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
6.4 Millimetre
Length of sensor -
56.9 Millimetre
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
0
Rated control supply voltage at DC -
0 Volt
Resolution of the light curtain -
519.8 Millimetre
Safety field height -
500 Millimetre
Scope of delivery of the one-way system -
Receiver
Suitable for safety functions -
Transmission range of the safety field -
8 Metre
Type of electric connection -
Other
Type of interface for safety communication -
Other
Type of safety acc. IEC 61496-1 -
4
Type of switching output of the OSSD -
Other
Voltage type -
Other
Wavelength of the sensor -
950 Nanometre
Width sensor -
52 Millimetre
ABB

Availability Back Order

£208.36
