2CTB815704R0800

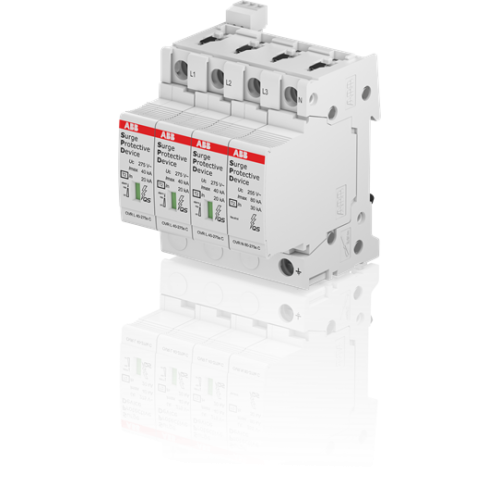

OVR T2 3N 40-275s P TS QS Surge Protective Device

Manufacturer's No: OVR T2 3N 40-275S     Manufacturer: ABB

Availability Back Order

£227.43
  • Surge protective device (SPD) type 2
  • Protects low-voltage consumer systems against surge voltages
  • Tested according to IEC 61643-11 standards
  • Compatible with System pro M compact series
  • Variants with "TS" feature an optional auxiliary contact
  • Variants with "reserve varistor" provide additional protection
  • Ensures basic protection even at the end of service life


Product

Manufacturer Material ID -
OVR T2 3N 40-275S
Net Weight -
0.60kg

Additional Product Information

Commodity Code -
85363090
Country of Origin -
BG
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Nominal voltage DC -
- Volt
Max. PV-voltage -
- Volt
Max. continuous voltage AC -
275 Volt
Nominal discharge surge current (8/20) -
20 kiloampere
Category type 2 -
Degree of protection (IP) -
IP20
Max. continuous voltage DC -
350 Volt
Construction size -
4 modular spacing
Degree of protection (IP rating) -
IP20
Leakage-current free -
Max. conductor cross section flexible (fine-strand) -
25 Square millimetre
Max. conductor cross section solid (solid, stranded) -
35 Square millimetre
Max. discharge surge current (8/20) -
20 kiloampere
Max. overcurrent protection device, parallel connection (fuse) -
160 Ampere
Max. overcurrent protection device, series connection (fuse) -
125 Ampere
Max. voltage (Uc) -
275 Volt
Mounting method -
Other
Nominal discharge surge current 8/20 µs (In) -
20 kiloampere
Nominal voltage AC -
230 Volt
Number of conductors (without earthing) -
4
Short-circuit breaking capacity (Isccr) -
100 kiloampere
Signalling at the device -
Optic
System configuration TN -
System configuration TN-C-S -
System configuration TN-S -
System configuration TT -
Type / Test class 2 -
Voltage protection level -
1.4 Kilovolt
Voltage protection level L-N -
1.4 Kilovolt
Voltage protection level N-PE -
1.4 Kilovolt
With remote signalling contact -
ABB

Availability Back Order

£227.43
