2CTB803876R0000

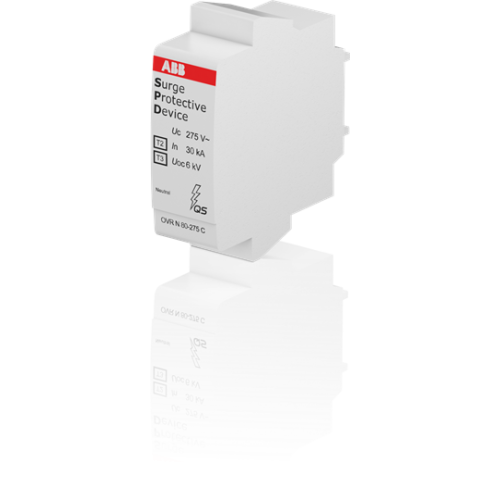

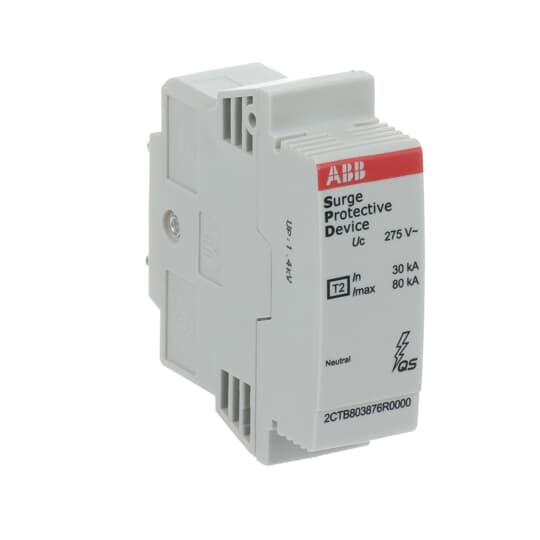

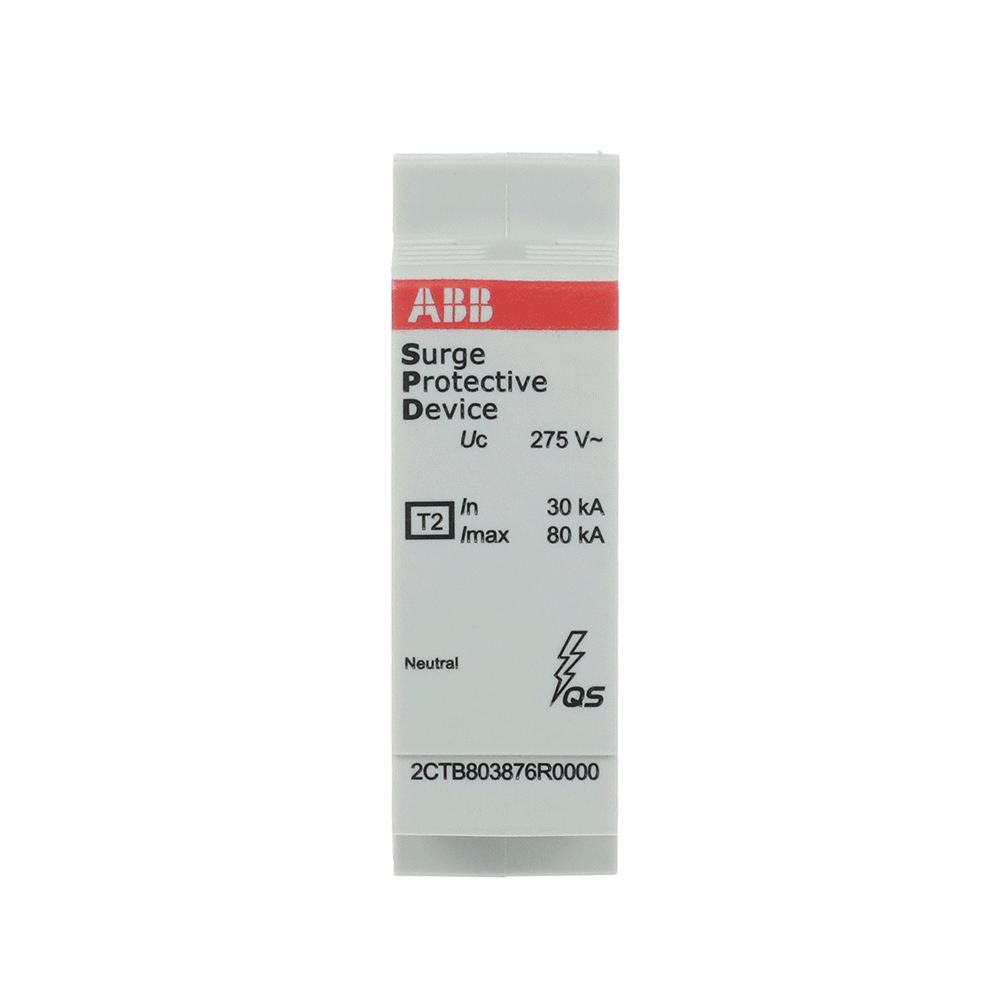

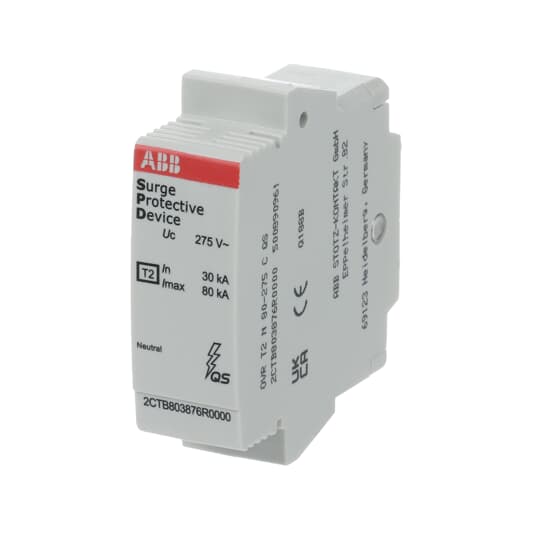

OVR T2-T3 N 80-275 C QS Surge Protective Device

Manufacturer's No: OVR T2-T3 N 80-275     Manufacturer: ABB

Availability Back Order

£68.94
  • Surge Protective Device
  • Model: OVR T2-T3 N 80-275 C QS
  • Voltage: 80-275 V
  • Type: Type 2/Type 3
  • Compact design
  • Reliable surge protection


Product

Manufacturer Material ID -
OVR T2-T3 N 80-275
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85363090
Country of Origin -
BG
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Nominal voltage DC -
- Volt
Max. continuous voltage DC -
- Volt
Max. PV-voltage -
- Volt
Max. continuous voltage AC -
275 Volt
Nominal discharge surge current (8/20) -
5 kiloampere
Category type 2 -
Degree of protection (IP) -
IP20
Construction size -
2 modular spacing
Degree of protection (IP rating) -
IP20
Max. conductor cross section flexible (fine-strand) -
16 Square millimetre
Max. conductor cross section solid (solid, stranded) -
25 Square millimetre
Max. discharge surge current (8/20) -
30 kiloampere
Max. overcurrent protection device, parallel connection (fuse) -
125 Ampere
Max. overcurrent protection device, series connection (fuse) -
125 Ampere
Max. voltage (Uc) -
275 Volt
Mounting method -
Other
Nominal discharge surge current 8/20 µs (In) -
30 kiloampere
Nominal voltage AC -
230 Volt
Number of conductors (without earthing) -
1
Short-circuit breaking capacity (Isccr) -
100 kiloampere
Signalling at the device -
Optic
System configuration TN -
System configuration TN-C-S -
System configuration TN-S -
System configuration TT -
Type / Test class 2 -
Voltage protection level -
1.4 Kilovolt
Voltage protection level L-N -
1.4 Kilovolt
Voltage protection level N-PE -
1.4 Kilovolt
ABB

Availability Back Order

£68.94
