2CTB815101R0800

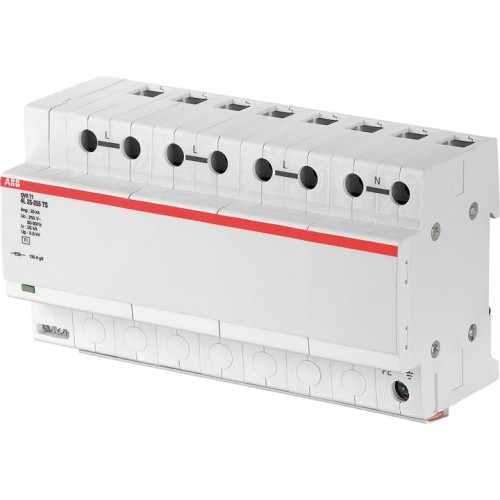

OVR T1 4L 25-255 TS Surge Protective Device

Manufacturer's No: OVRT14L25255TS     Manufacturer: ABB
OVR T1 4L 25-255 TS Surge Protective Device

Availability Back Order

POA
  • Surge Protective Device model: OVR T1 4L 25-255 TS
  • Maximum surge current: 25 kA
  • Nominal discharge current: 10 kA
  • Voltage protection level: 255 V
  • Product code: 510108


Product

Manufacturer Material ID -
OVRT14L25255TS
Net Weight -
1.22kg

Additional Product Information

Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Lightning impulse current (10/350 µs) -
25 kiloampere
Degree of protection (IP) -
UN
Specific energy (W/R) -
- Kilojoule per Ohm
Mounting method -
DIN rail (top hat rail) 35 mm
Lightning impulse current (10/350 µs) -
25 kiloampere
With remote signalling contact -
Construction size -
8 modular spacing
Voltage protection level -
2.5 Kilovolt
Exhausting -
Follow current extinguishing capability -
50 kiloampere
Max. continuous voltage AC -
255 Volt
Nominal discharge surge current (8/20) -
25 kiloampere
Nominal voltage AC -
230 Volt
Nominal voltage DC -
0 Volt
Category type 1 -
Voltage protection level L-N -
2.5 Kilovolt
Signalling at the device -
None
Max. continuous voltage DC -
0 Volt
Voltage protection level N-PE -
2.5 Kilovolt
Max. conductor cross section solid (solid, stranded) -
50 Square millimetre
Max. conductor cross section flexible (fine-strand) -
35 Square millimetre
Voltage protection level (DC+ - DC-) -
0 Kilovolt
Voltage protection level (DC+/DC- - PE) -
0 Kilovolt
System configuration TN-C -
System configuration TN-S -
