6833007

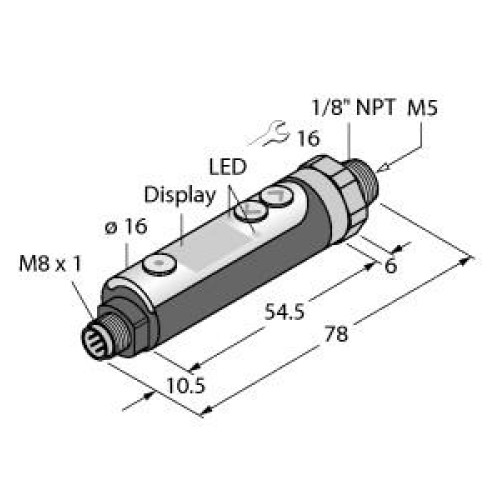

Pressure Sensor, IO-Link with 2 PNP Transistor Switching Outputs

Manufacturer's No: PK010R-P14-2UP8X-V1141     Manufacturer: Turck Banner
Pressure Sensor, IO-Link with 2 PNP Transistor Switching Outputs

Availability On Request

£259.30
  • Pressure sensor with IO-Link interface
  • 2 PNP transistor switching outputs
  • Operating voltage: 10.8 to 30 VDC
  • Compact design with rotatable sensor body
  • Suitable for pressure and vacuum monitoring
  • Pressure range: 0 to 10 bar rel.
  • Excellent EMC properties
  • 360° rotatable display


Product

Manufacturer Material ID -
PK010R-P14-2UP8X-V1141
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
90262020000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Degree of protection (IP rating) -
IP65
End setting -
10000 Hecto Pascal
End value measuring range pressure -
1000000 Pascal
Engaging pressure -
0 Pressure
Initial setting -
0 Hecto Pascal
Initial value measuring range pressure -
0 Pascal
Max. test pressure -
15 Pressure
Medium temperature -
0 Degrees celsius
Rated voltage Ue at DC -
10.8 Volt
Switch off pressure -
10 Pressure
Type of electric connection -
Other
Turck Banner

Availability On Request

£259.30
