50025186

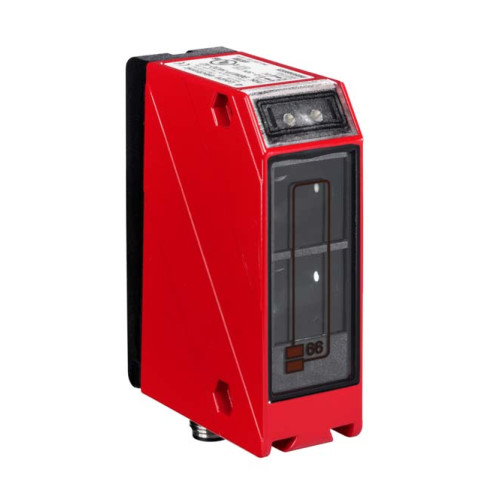

The Polarized retro-reflective photoelectric sensor from . Operating range limit: 0,1 ... 10 m; Light source: LED, Red; Switching

Manufacturer's No: PRK 96M/P-1370-42     Manufacturer: Leuze
The Polarized retro-reflective photoelectric sensor from . Operating range limit: 0,1 ... 10 m; Light source: LED, Red; Switching frequency: 1.000 Hz; Supply voltage: 10 ... 30 V, DC; Digital switch

Availability Back Order

£299.00
  • Operating Range Limit: 0.1m to 10m
  • Light Source: Red LED
  • Supply Voltage: 10V to 30V DC
  • Digital Switching Outputs: 2 pieces
  • Switching Output 1 & 2: Transistor, PNP, Light switching
  • Switching Frequency: 1,000 Hz
  • Connection: M12 Metal 4-pin Connector
  • Design: Cubic Housing
  • Dimensions: 30mm x 90mm x 70mm
  • Housing Material: Metal

Read more

  • Operational Controls: 270° Potentiometer
  • Ambient Temperature, Operation: -40°C to 55°C
  • Degree of Protection: IP 67

Accessories



Product

Manufacturer Material ID -
PRK 96M/P-1370-42
Net Weight -
0.44kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Max. output current -
- Milliampere
Number of contact energized outputs with signalling function -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Light dot -
- Square millimetre
Max. output current at protected output -
- Milliampere
Time of reaction -
- Millisecond
Transmission range of the safety field -
- Metre
Switching voltage of OSSD at state "high" -
- Volt
Type of safety acc. IEC 61496-1 -
UN
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Metal
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
90 Millimetre
Housing material -
Metal
Laser protection class -
None
Length of sensor -
70 Millimetre
Material of optical surface -
Glass
Max. switching distance -
8000 Millimetre
Min. reflector distance -
300 Millimetre
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Operation agent-safety class -
Safety class 2
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
8000 Millimetre
Reaction time -
0 Millisecond
Sensing mode -
Light switching
Setting procedure -
Manual adjustment
Switching frequency -
1000 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Wavelength of the sensor -
0 Nanometre
Width sensor -
30 Millimetre
Leuze

Availability Back Order

£299.00
