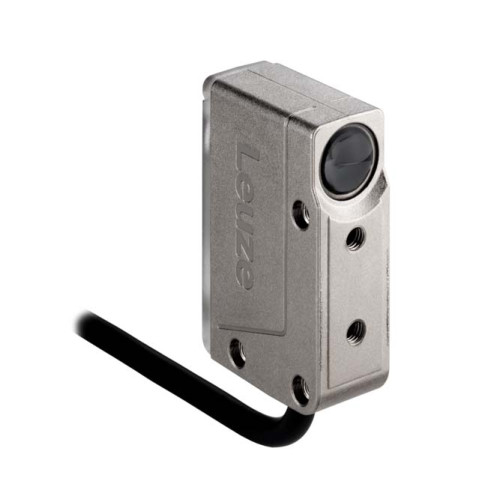

PRK18B.FXT3/2N-6000 - Polarized retro-reflective photoelectric sensor

Manufacturer's No: PRK18B.FXT3/2N-6000     Manufacturer: Leuze
PRK18B.FXT3/2N-6000 - Polarized retro-reflective photoelectric sensor

Availability On Request

POA
The Polarized retro-reflective photoelectric sensor from . Application: Detection of highly transparent bottles, Detection of highly transparent foils and glass panes; Operating range limit: 0 ... 3,6 m; Light source: LED, Red; Shift angle: Optical axis


Product

Manufacturer Material ID -
PRK18B.FXT3/2N-6000
Net Weight -
240.00kg

Additional Product Information

UNSPSC -
39121528

Technical Specification

Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Type of electric connection -
UN
Type of switch function -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Laser protection class -
UN
Light dot -
- Square millimetre
Max. output current at protected output -
- Milliampere
Transmission range of the safety field -
- Metre
Switching voltage of OSSD at state "high" -
- Volt
Type of safety acc. IEC 61496-1 -
UN
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Voltage type -
DC
Max. output current -
100 Milliampere
Material housing -
Metal
Ambient temperature -
60 Degrees celsius
Switching frequency -
5 Hertz
Number of semiconductor outputs with signalling function -
2
Type of switching output -
NPN
Operation agent-safety class -
Safety class 3
Setting procedure -
Teach-In
Construction type housing -
Cuboid
Type of light -
Polarized red light
Min. reflector distance -
0 Millimetre
Time of reaction -
1 Millisecond
Wavelength of the sensor -
620 Nanometre
Material of optical surface -
Glass
Degree of protection (IP) -
IP67
Width sensor -
15 Millimetre
Height of sensor -
47 Millimetre
Length of sensor -
325 Millimetre
Max. switching distance -
3000 Millimetre
Sensing mode -
Light switching
Rated switching distance -
3000 Millimetre
Leuze

Availability On Request

POA
