50139666

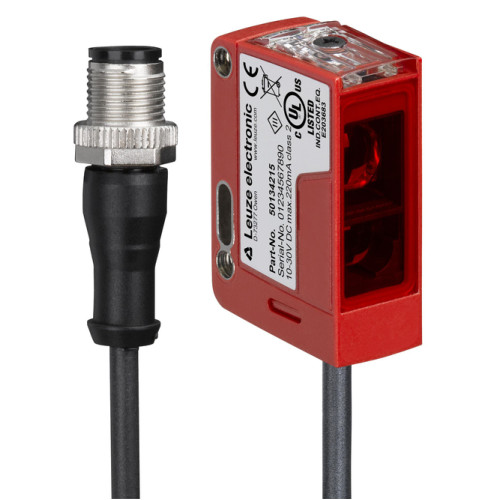

Polarized retro-reflective photoelectric sensor Operating range limit: 0.12 ... 18 m; Light source: Laser, Red; Protection class:

Manufacturer's No: PRK25CL1.1/4X-200-M12     Manufacturer: Leuze
Polarized retro-reflective photoelectric sensor Operating range limit: 0.12 ... 18 m; Light source: Laser, Red; Protection class: 1; Shift angle: Typ. ± 1,5°; Supply voltage: 10 ... 30 V, DC;

Availability Back Order

£170.00
  • Operating Range Limit: 0.15m to 25m
  • Light Source: Red Laser
  • Shift Angle: ± 1.5°
  • Supply Voltage: 10V to 30V DC
  • Digital Switching Outputs: 1 Transistor (PNP)
  • Switching Frequency: 2,500 Hz
  • Connection: 200mm PUR Cable with M12 Connector
  • Housing Design: Cubic, Plastic Material
  • Dimensions: 15mm x 42.7mm x 30mm
  • Operational Controls: 270° Potentiometer

Read more

  • Ambient Temperature Range: -40°C to 60°C
  • Degree of Protection: IP67, IP69K

Accessories



Product

Manufacturer Material ID -
PRK25CL1.1/4X-200-M12
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Number of contact energized outputs with signalling function -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Light dot -
- Square millimetre
Max. output current at protected output -
- Milliampere
Transmission range of the safety field -
- Metre
Switching voltage of OSSD at state "high" -
- Volt
Type of safety acc. IEC 61496-1 -
UN
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Max. output current -
100 Milliampere
Material housing -
Plastic
Time of reaction -
33 Millisecond
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
42.7 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
30 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Maximum output current -
100 Milliampere
Min. reflector distance -
200 Millimetre
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
20000 Millimetre
Reaction time -
0.33 Millisecond
Sensing mode -
Light switching
Setting procedure -
Manual adjustment
Switching frequency -
2500 Hertz
Type of electric connection -
Cable with connector
Type of light -
Laser diode, red light
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Wavelength of the sensor -
650 Nanometre
Width sensor -
15 Millimetre
