50133673

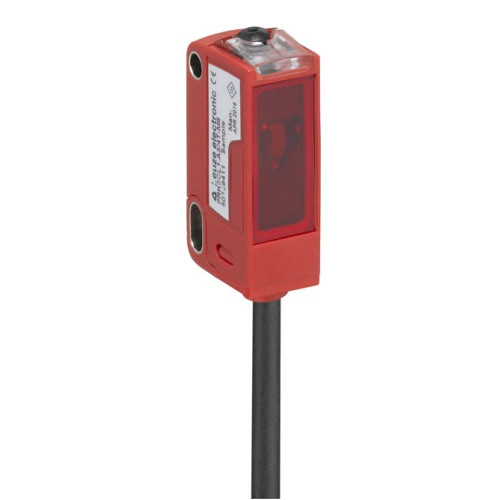

The Polarized retro-reflective photoelectric sensor from . Application: Detection of highly transparent bottles; Supply voltage: 1

Manufacturer's No: PRK3C.TT3/4P     Manufacturer: Leuze
The Polarized retro-reflective photoelectric sensor from . Application: Detection of highly transparent bottles; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 Piece(s); Digital switc

Availability Back Order

£170.00
  • Application: Detection of highly transparent bottles and transparent films
  • Special version: Autocollimation, Tracking function
  • Operating range limit: 0 to 3.6 m
  • Light source: Red LED
  • Supply voltage: 10 to 30 V DC
  • Digital switching outputs: 2 pieces
  • Switching output 1: Transistor, PNP, Light switching
  • Switching output 2: Transistor, PNP, Dark switching
  • Switching frequency: 1,500 Hz
  • Connection: 2,000 mm cable, 4-wire

Read more

  • Design: Cubic housing
  • Dimensions: 11.4 mm x 34.2 mm x 18.3 mm
  • Housing material: Plastic
  • Operational controls: Teach button
  • Ambient temperature during operation: -40 to 60 °C
  • Degree of protection: IP 67, IP 69K

Accessories



Product

Manufacturer Material ID -
PRK3C.TT3/4P
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Number of contact energized outputs with signalling function -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Light dot -
- Square millimetre
Max. output current at protected output -
- Milliampere
Transmission range of the safety field -
- Metre
Switching voltage of OSSD at state "high" -
- Volt
Type of safety acc. IEC 61496-1 -
UN
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Max. output current -
100 Milliampere
Material housing -
Plastic
Time of reaction -
33 Millisecond
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
34.2 Millimetre
Housing material -
Plastic
Laser protection class -
None
Length of sensor -
18.3 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
3000 Millimetre
Maximum output current -
100 Milliampere
Min. reflector distance -
0 Millimetre
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
3000 Millimetre
Reaction time -
0.33 Millisecond
Sensing mode -
Light switching
Setting procedure -
Teach-In
Switching frequency -
1500 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Wavelength of the sensor -
635 Nanometre
Width sensor -
11.4 Millimetre
Leuze

Availability Back Order

£170.00
