50140148

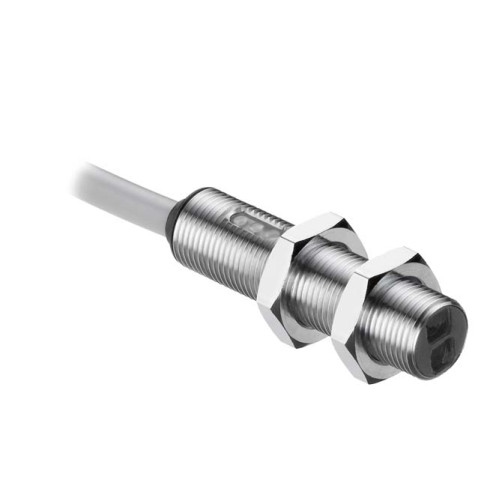

Polarized retro-reflective photoelectric sensor Operating range limit: 0.02 ... 2.3 m; Light source: LED, Red; Supply voltage: 10

Manufacturer's No: PRK412B/2     Manufacturer: Leuze
Polarized retro-reflective photoelectric sensor Operating range limit: 0.02 ... 2.3 m; Light source: LED, Red; Supply voltage: 10 ... 36 V, DC; Digital switching outputs: 1 Piece(s); Switching output

Availability On Request

£107.00
  • Operating range limit: 0.02m to 2.3m
  • Light source: Red LED
  • Supply voltage: 10V to 36V DC
  • Digital switching outputs: 1 piece
  • Switching output 1: NPN Transistor for light switching
  • Switching frequency: 1,000 Hz
  • Connection: 2,000mm cable, 3-wire
  • Design: Cylindrical housing with M12 thread size
  • Dimensions: 12mm x 51mm
  • Housing material: Metal

Read more

  • Ambient temperature during operation: -25°C to 55°C
  • Degree of protection: IP 67

Accessories



Product

Manufacturer Material ID -
PRK412B/2
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
LK
UNSPSC -
39121528

Technical Specification

Number of contact energized outputs with signalling function -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Setting procedure -
UN
Light dot -
- Square millimetre
Max. output current at protected output -
- Milliampere
Transmission range of the safety field -
- Metre
Switching voltage of OSSD at state "high" -
- Volt
Type of safety acc. IEC 61496-1 -
UN
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Max. output current -
200 Milliampere
Material housing -
Metal
Time of reaction -
5 Millisecond
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
12 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Housing material -
Metal
Laser protection class -
None
Length of sensor -
51 Millimetre
Material of optical surface -
Glass
Max. switching distance -
1800 Millimetre
Maximum output current -
200 Milliampere
Min. reflector distance -
20 Millimetre
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
1800 Millimetre
Reaction time -
0.5 Millisecond
Sensing mode -
Light switching
Switching frequency -
1000 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Other
Type of switching output -
NPN
Voltage type -
DC
Wavelength of the sensor -
660 Nanometre
Leuze

Availability On Request

£107.00
