6832679

Pressure Sensor (Rotatable), 2 PNP/NPN Transistor Switching Outputs

Manufacturer's No: PS010V-504-2UPN8X-H1141     Manufacturer: Turck Banner

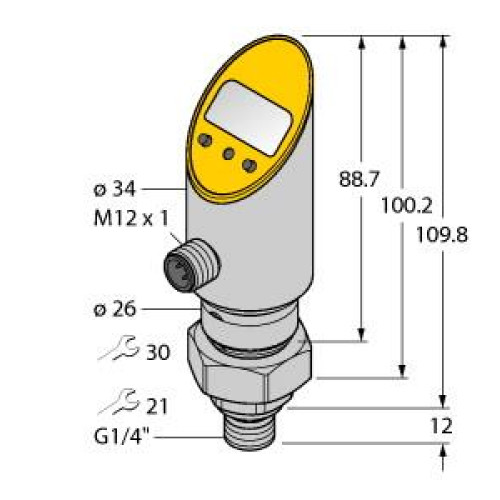

Pressure Sensor (Rotatable), 2 PNP/NPN Transistor Switching Outputs

Availability On Request

POA
  • Pressure sensor with rotatable housing
  • 2 PNP/NPN transistor switching outputs
  • Operating voltage: 18 to 30 VDC
  • Rotatable housing after plugging process connection
  • Reading of adjusted values without tool
  • Recessed pushbutton and keylock for secure programming
  • Permanent indication of pressure in bar, psi, kPa, MPa, misc
  • Peak pressure memory feature
  • Pressure range: -1 to 10 bar rel.

Follow-up article



Product

Manufacturer Material ID -
PS010V-504-2UPN8X-H1141
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Bursting pressure -
50 Pressure
Degree of protection (IP rating) -
IP67
End setting -
10000 Hecto Pascal
End value measuring range pressure -
1000000 Pascal
Engaging pressure -
-1 Pressure
Initial setting -
-1000 Hecto Pascal
Initial value measuring range pressure -
-100000 Pascal
Max. test pressure -
50 Pressure
Medium temperature -
-40 Degrees celsius
Rated voltage Ue at DC -
18 Volt
Switch off pressure -
10 Pressure
Type of electric connection -
Other
