6833408

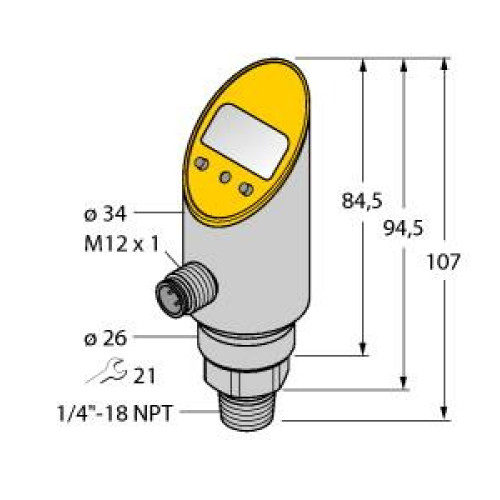

Pressure sensor, With Analog Output and PNP/NPN Transistor Switching Output, Out

Manufacturer's No: PS025V-303-LI2UPN8X-H1141     Manufacturer: Turck Banner
Pressure sensor, With Analog Output and PNP/NPN Transistor Switching Output, Out

Availability On Request

£514.77
  • Pressure sensor with analog output and PNP/NPN transistor switching output
  • Operating voltage: 18-30 VDC
  • Reprogrammable output 2 as switching output
  • Rigid process connection with non-rotatable body
  • Reading of adjusted values without tool
  • Secure programming with recessed pushbutton and keylock
  • Permanent indication of pressure in bar, psi, kPa, MPa, misc
  • Peak pressure memory feature
  • Pressure range: -1 to 25 bar rel.

Follow-up article



Product

Manufacturer Material ID -
PS025V-303-LI2UPN8X-H1141
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
90262020000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Adjustable current range -
4 Ampere
Bursting pressure -
110 Pressure
Degree of protection (IP rating) -
IP67
End setting -
25000 Hecto Pascal
End value measuring range pressure -
2500000 Pascal
Engaging pressure -
-1 Pressure
Initial setting -
-1000 Hecto Pascal
Initial value measuring range pressure -
-100000 Pascal
Max. test pressure -
110 Pressure
Medium temperature -
-40 Degrees celsius
Rated voltage Ue at DC -
18 Volt
Switch off pressure -
25 Pressure
Type of electric connection -
Other
Turck Banner

Availability On Request

£514.77
