1SAM201906R1125

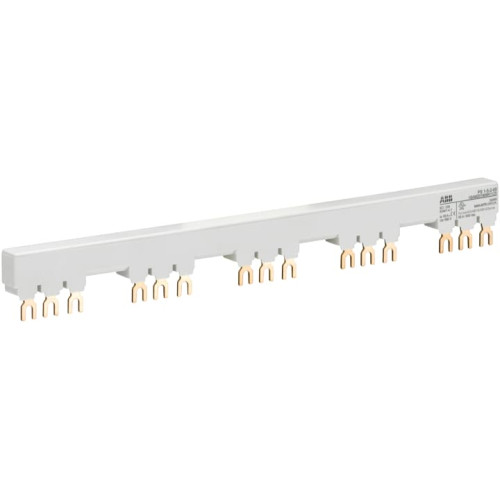

PS1-5-2-65 3-phase busbar for 5 MS116 / MS132 with 2 HK/SK, Ie=65A

Manufacturer's No: PS1-5-2-65     Manufacturer: ABB
PS1-5-2-65 3-phase busbar for 5 MS116 / MS132 with 2 HK/SK, Ie=65A

Availability Available to order

£23.57
  • PS1-5-2-65 3-phase busbar
    • For connecting 5 MS116/MS132 with 2 HK/SK
    • Rated current: 65A
    • Ensures quick and safe connection
    • Cost-effective solution


Product

Manufacturer Material ID -
PS1-5-2-65
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Number of modular spacings -
17
Pitch dimensions -
14 Millimetre
Rated short-time withstand current lcw -
100 kiloampere
Colour -
Grey
Conditioned rated short-circuit current Iq -
100 kiloampere
Cross section -
8 Square millimetre
Insulated -
Length -
293.5 Millimetre
Max. rated operation voltage Ue -
690 Volt
Module width -
14 Millimetre
Number of phases -
3
Number of poles -
3
Rated permanent current Iu -
65 Ampere
Rated surge voltage -
6 Kilovolt
Suitable for devices with auxiliary switch -
Suitable for number of devices -
5
Type of electric connection -
Fork
Width in number of modular spacings -
16.7
