3052915

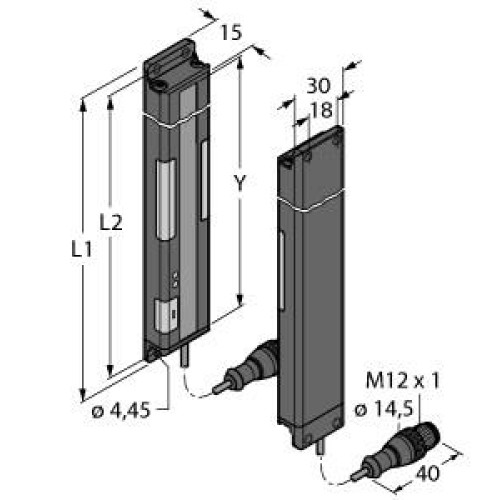

PVA Series: 375 Array Pair - Emitter/Receiver, Range: 2 m, Input: 12-30 V dc, Output: 1 PNP (on receiver), 2 m M12 Pigtail QD

Manufacturer's No: PVA375P6Q     Manufacturer: Turck Banner
PVA Series: 375 Array Pair - Emitter/Receiver, Range: 2 m, Input: 12-30 V dc, Output: 1 PNP (on receiver), 2 m M12 Pigtail QD

Availability On Request

£1,205.88
  • Pick-to-Light system with Placement Sensor and Light Grid Kit
  • Operating voltage: 12-30 VDC
  • Max. range: 2000 mm
  • Cable length: 2 m
  • Scan field (L2): 375 mm
  • 16-beam system with beam spacing of 25 mm
  • Emitter/Receiver with max. range of 2 m
  • Light/Dark operation with selectable frequency for crosstalk protection
  • PNP switching output for the receiver
  • Input for operation request light: +24 VDC

Read more

  • Protection class: IP62


Product

Manufacturer Material ID -
PVA375P6Q
Net Weight -
0.91kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216
