32311 {B}

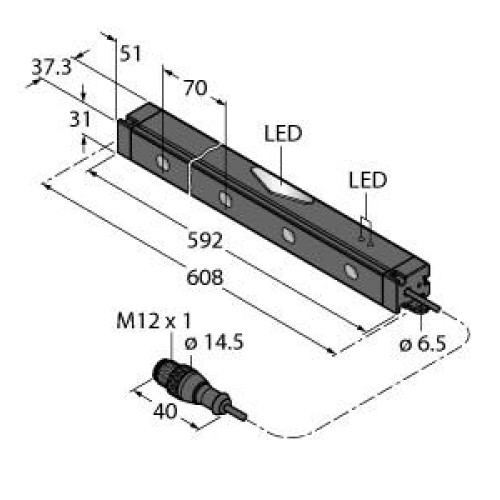

PVL Array Series: 500 Length, Voltage: 12-30 V dc, Housing: Aluminum, IP50, Input/Output: PNP, Colors: Green Job, Red Mispick, 2 m

Manufacturer's No: PVL500PQ     Manufacturer: Turck Banner
PVL Array Series: 500 Length, Voltage: 12-30 V dc, Housing: Aluminum, IP50, Input/Output: PNP, Colors: Green Job, Red Mispick, 2 m (6.5 ft) 5-pin M12 Pigtail QD

Availability On Request

£531.08
  • Pick-to-Light system
  • Placement Sensor with Reflex Light Grid
  • Operating voltage: 12-30 VDC
  • Max. range: 1500 mm
  • Scan field: 500 mm
  • 8-beam system with a max. distance to reflector of 1.5 m
  • Protection class: IP50
  • Cable length: 2 m, PVC material, with plug, M12 x 1, 4-pin
  • Reflector tape included in the scope of delivery (25 x 280 mm or 25 x 555 mm)
  • PNP switching output


Product

Manufacturer Material ID -
PVL500PQ
Net Weight -
0.87kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39121528
Turck Banner

Availability On Request

£531.08
