3044856

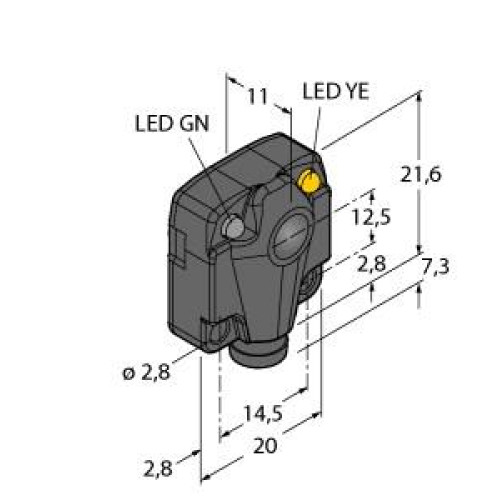

Q10 Series: Emitter, Range: 1.8 m, Input: 10-30 V dc, Output: Not Applicable, 3-pin M8 Integral QD

Manufacturer's No: Q106EQ     Manufacturer: Turck Banner
Q10 Series: Emitter, Range: 1.8 m, Input: 10-30 V dc, Output: Not Applicable, 3-pin M8 Integral QD

Availability On Request

£75.31
  • Type: Photoelectric Sensor, Opposed Mode (Emitter)
  • Miniature sensor with a max. range of 1800 mm
  • Operating voltage: 10-30 VDC
  • Male connector: M8 x 1, 3-pin
  • Protection class: IP67
  • Glass lens


Product

Manufacturer Material ID -
Q106EQ
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
10 Millimetre
Housing material -
Plastic
Length of sensor -
28.9 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Glass
Max. switching distance -
1800 Millimetre
Rated switching distance -
1800 Millimetre
Reaction time -
8 Millisecond
Type of electric connection -
Connector M8
Type of light -
Infrared light
Wavelength of the sensor -
880 Nanometre
Width sensor -
20 Millimetre
Turck Banner

Availability On Request

£75.31
