3076486

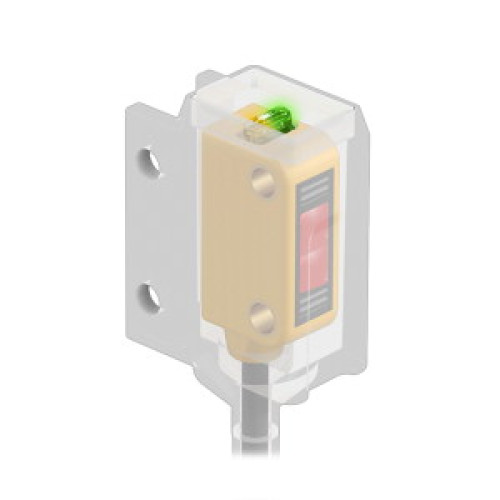

Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), Miniature Sensor

Manufacturer's No: Q12AB6RCR     Manufacturer: Turck Banner
Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), Miniature Sensor

Availability On Request

POA
  • Type: Photoelectric Sensor, Opposed Mode (Emitter/Receiver)
  • Design: Miniature Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2000 mm
  • Cable Length: 2 m, PVC sheath
  • Protection Class: IP67
  • Features LED all-round visible
  • Indication of insufficient excess gain
  • Switching Output: Bipolar, light operation


Product

Manufacturer Material ID -
Q12AB6RCR
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

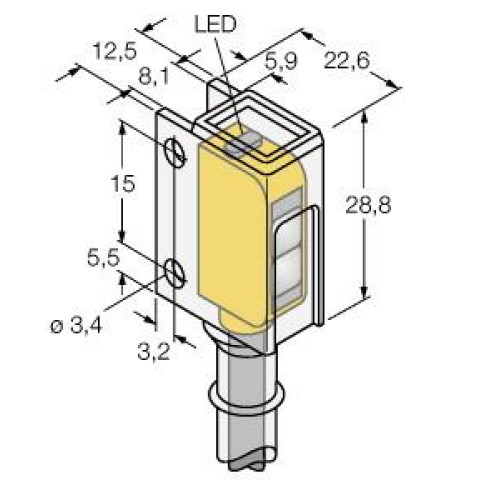

Height of sensor -
28.8 Millimetre
Housing material -
Plastic
Length of sensor -
22.6 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
1.3 Millisecond
Sensing mode -
Light switching
Switching frequency -
450 Hertz
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
640 Nanometre
Width sensor -
12.5 Millimetre
