3077113

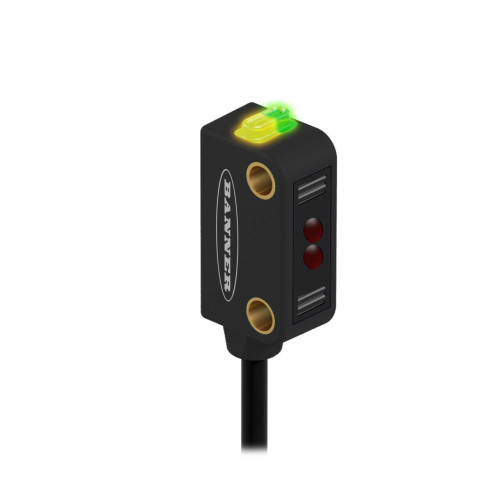

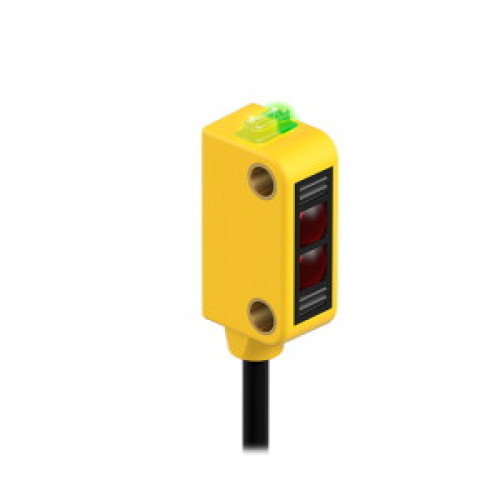

WORLD-BEAM Q12 Series: Polarized Retro, Range: 1 m, Input: 10-30 V dc, Output: LO, 1 PNP, 150 (6 in) 3-pin M8 Pigtail QD

Manufacturer's No: Q12AP6LPQ3     Manufacturer: Turck Banner
WORLD-BEAM Q12 Series: Polarized Retro, Range: 1 m, Input: 10-30 V dc, Output: LO, 1 PNP, 150 (6 in) 3-pin M8 Pigtail QD

Availability Back Order

£129.22
  • Model: WORLD-BEAM Q12 Series
  • Type: Polarized Retro
  • Range: 1 meter
  • Input: 10-30 V dc
  • Output: LO, 1 PNP
  • Cable Length: 150 mm (6 inches), 3-pin M8 Pigtail QD


Product

Manufacturer Material ID -
Q12AP6LPQ3
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

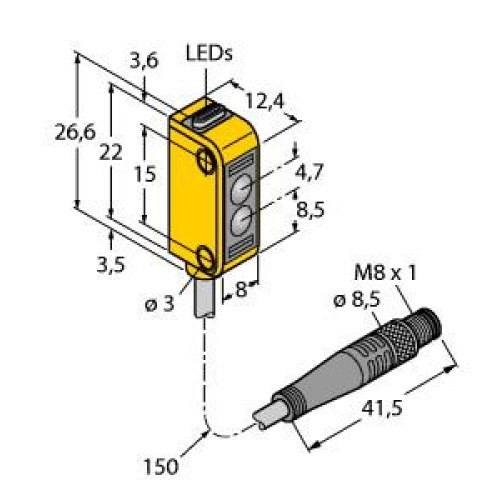

Height of sensor -
26.6 Millimetre
Housing material -
Plastic
Length of sensor -
12.4 Millimetre
Material of optical surface -
Glass
Max. switching distance -
1000 Millimetre
Rated switching distance -
1000 Millimetre
Reaction time -
0.7 Millisecond
Switching frequency -
700 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarized red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
640 Nanometre
Width sensor -
8 Millimetre
Turck Banner

Availability Back Order

£129.22
