3072127

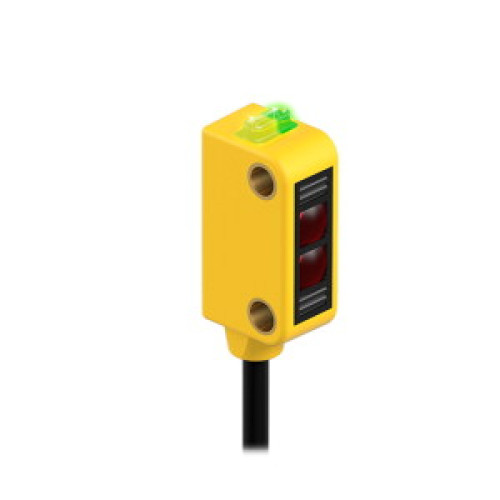

Photoelectric Sensor, Retroreflective Sensor, Miniature Sensor

Manufacturer's No: Q12RB6LV W/30     Manufacturer: Turck Banner
Photoelectric Sensor, Retroreflective Sensor, Miniature Sensor

Availability Available to order

POA
  • Type: Photoelectric Retroreflective Miniature Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 1500 mm
  • Cable Length: 9 m, PVC
  • Protection Class: IP67
  • LED for all-round visibility
  • Indication of insufficient excess gain
  • Switching Output: Bipolar, dark operation


Product

Manufacturer Material ID -
Q12RB6LV W/30
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

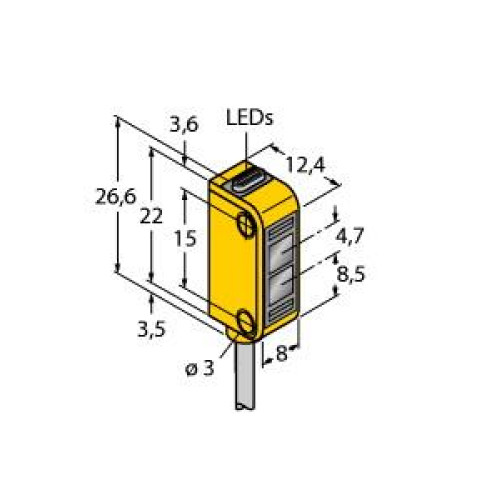

Height of sensor -
26.6 Millimetre
Housing material -
Plastic
Length of sensor -
12.4 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
1500 Millimetre
Rated switching distance -
1500 Millimetre
Reaction time -
0.7 Millisecond
Switching frequency -
700 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
640 Nanometre
Width sensor -
8 Millimetre
