3078226

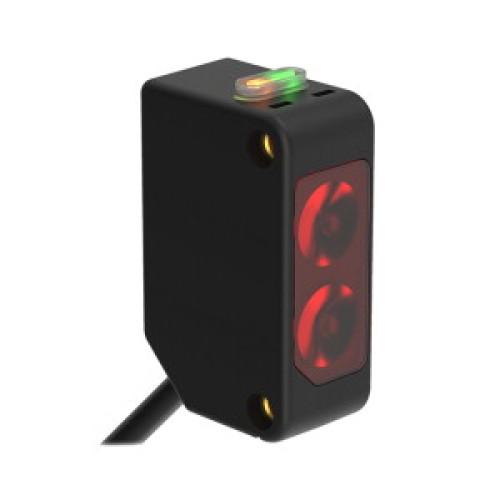

WORLD-BEAM Q20 Series: Long Range Emitter (IR), Range: 20 m, Input 10-30 V dc, Output: No output, 150 (6 in) M8 Pigtail QD

Manufacturer's No: Q20ELQ     Manufacturer: Turck Banner
WORLD-BEAM Q20 Series: Long Range Emitter (IR), Range: 20 m, Input 10-30 V dc, Output: No output, 150 (6 in) M8 Pigtail QD

Availability On Request

£63.52
  • Type: Photoelectric Sensor, Opposed Mode (Emitter)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 20000 mm
  • Cable Length: 0.15 m, 4-pin male end
  • Cable Type: PVC, M8 × 1, 150 mm
  • Protection Class: IP67
  • Features: LED, all-round visible


Product

Manufacturer Material ID -
Q20ELQ
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
32 Millimetre
Housing material -
Plastic
Length of sensor -
20 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Type of electric connection -
Connector M8
Type of light -
Infrared light
Wavelength of the sensor -
850 Nanometre
Width sensor -
12 Millimetre
Turck Banner

Availability On Request

£63.52
