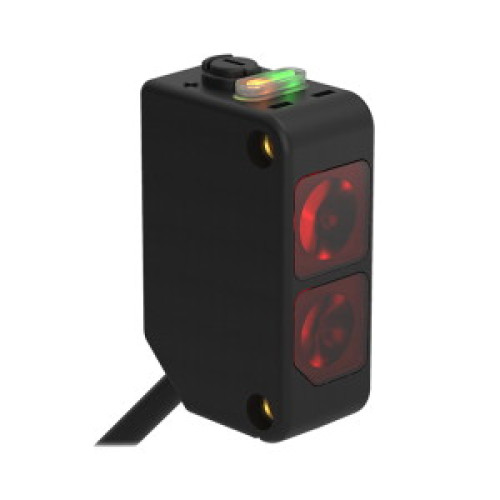

WORLD-BEAM Q20 Series: Polarized Retro, Range: 4 m, Input 10-30 V dc, Output: Complementary Solid-State NPN, 2 m (6.5 ft) Cable

Manufacturer's No: Q20NLP     Manufacturer: Turck Banner
WORLD-BEAM Q20 Series: Polarized Retro, Range: 4 m, Input 10-30 V dc, Output: Complementary Solid-State NPN, 2 m (6.5 ft) Cable

Availability On Request

£97.99
  • Photoelectric sensor with retroreflective sensor and polarizing filter
  • Operating voltage: 10-30 VDC
  • Maximum range: 4000 mm
  • Cable length: 2 m, PVC material
  • Protection class: IP67
  • LED with all-round visibility
  • Sensitivity adjustment via potentiometer
  • NPN switching output, changeover


Product

Manufacturer Material ID -
Q20NLP
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

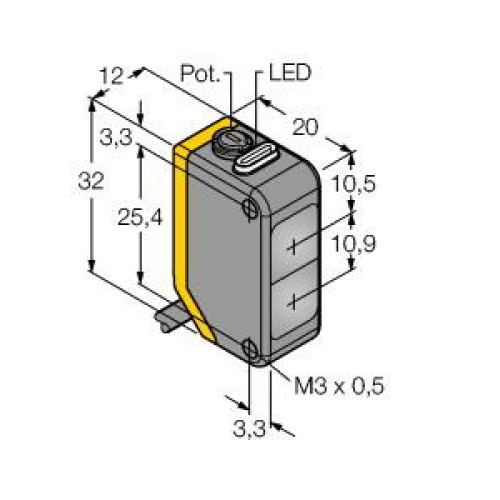

Height of sensor -
32 Millimetre
Housing material -
Plastic
Length of sensor -
20 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
4000 Millimetre
Rated switching distance -
4000 Millimetre
Reaction time -
0.8 Millisecond
Switching frequency -
600 Hertz
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
645 Nanometre
Width sensor -
12 Millimetre
