3077779

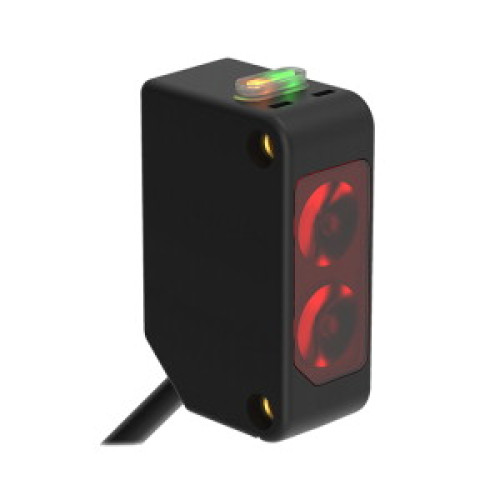

WORLD-BEAM Q20 Series: Receiver (Red), Range: 12 m, Input 10-30 V dc, Output: Complementary Solid-State NPN, 2 m (6.5 ft) Cable

Manufacturer's No: Q20NR     Manufacturer: Turck Banner
WORLD-BEAM Q20 Series: Receiver (Red), Range: 12 m, Input 10-30 V dc, Output: Complementary Solid-State NPN, 2 m (6.5 ft) Cable

Availability On Request

£78.03
  • Type: Photoelectric Sensor, Opposed Mode Sensor (Receiver)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 12000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • LED: All-round visible
  • Output: NPN switching
  • Output Type: Changeover


Product

Manufacturer Material ID -
Q20NR
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

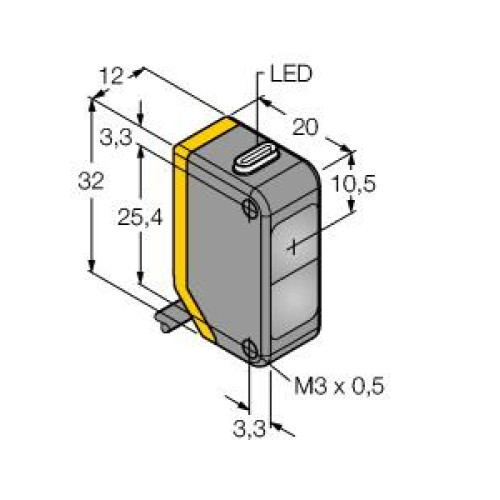

Height of sensor -
32 Millimetre
Housing material -
Plastic
Length of sensor -
20 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
12000 Millimetre
Rated switching distance -
12000 Millimetre
Reaction time -
1 Millisecond
Switching frequency -
600 Hertz
Type of electric connection -
Cable
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
655 Nanometre
Width sensor -
12 Millimetre
