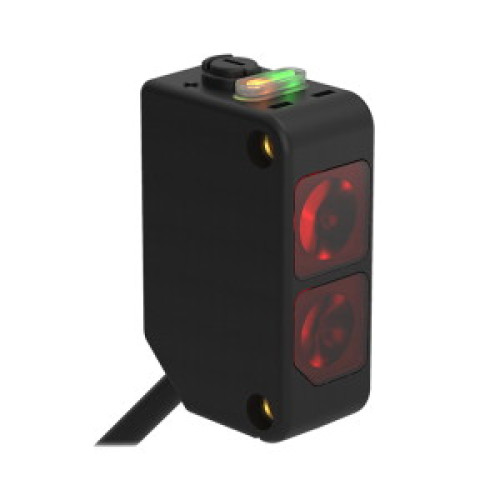

WORLD-BEAM Q20 Series: Diffuse (Red), Range: 250, Input 10-30 V dc, Output: Complementary Solid-State PNP, 150 (6 in) M12 Pigtail

Manufacturer's No: Q20PDQ5     Manufacturer: Turck Banner
WORLD-BEAM Q20 Series: Diffuse (Red), Range: 250, Input 10-30 V dc, Output: Complementary Solid-State PNP, 150 (6 in) M12 Pigtail QD

Availability On Request

£106.16
  • Photoelectric Sensor: Diffuse-Mode
  • Operating Voltage: 10-30 VDC
  • Max. Range: 250 mm
  • Cable Length: 0.15 m, Male end
  • Cable Type: M12 × 1, 4-pin, PVC, 150 mm
  • Protection Class: IP67
  • LED: All-round visible
  • Sensitivity Adjustment: Via potentiometer
  • Switching Output: PNP, Changeover


Product

Manufacturer Material ID -
Q20PDQ5
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
32 Millimetre
Housing material -
Plastic
Length of sensor -
20 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
250 Millimetre
Reaction time -
0.8 Millisecond
Switching frequency -
600 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
655 Nanometre
Width sensor -
12 Millimetre
