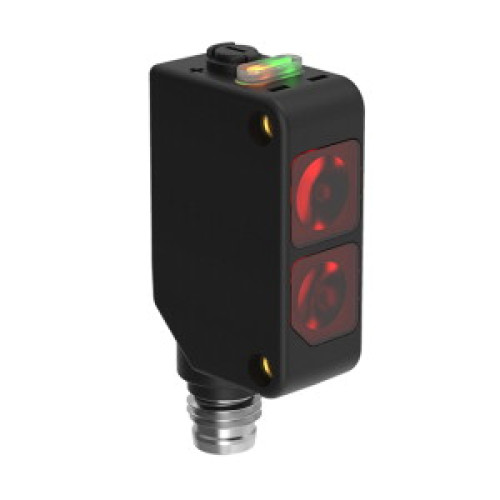

WORLD-BEAM Q20 Series: Diffuse (Red), Range: 250, Input 10-30 V dc, Output: Complementary Solid-State PNP, M8 Integral QD

Manufacturer's No: Q20PDQ7     Manufacturer: Turck Banner
WORLD-BEAM Q20 Series: Diffuse (Red), Range: 250, Input 10-30 V dc, Output: Complementary Solid-State PNP, M8 Integral QD

Availability On Request

£97.99
  • Photoelectric Sensor
  • Diffuse-Mode Sensor
  • Operating voltage: 10-30 VDC
  • Max. range: 250 mm
  • Male M8 × 1; 4-pin
  • Protection class: IP67
  • LED, all-round visible
  • Sensitivity adjusted via potentiometer
  • PNP switching output, changeover


Product

Manufacturer Material ID -
Q20PDQ7
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
42 Millimetre
Housing material -
Plastic
Length of sensor -
20 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
250 Millimetre
Reaction time -
0.8 Millisecond
Switching frequency -
600 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
655 Nanometre
Width sensor -
12 Millimetre
