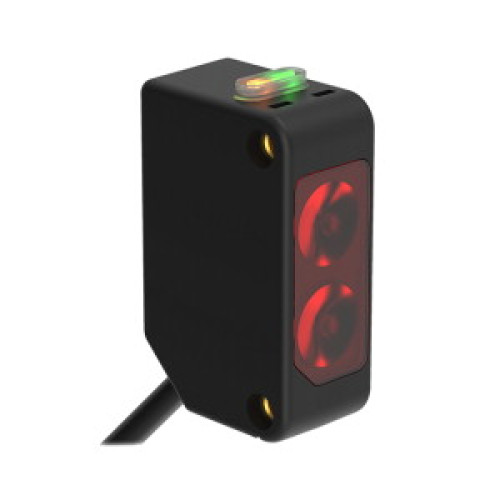

WORLD-BEAM Q20 Series: Receiver (Red), Range: 12 m, Input 10-30 V dc, Output: Complementary Solid-State PNP, 150 (6 in) M12 Pigtai

Manufacturer's No: Q20PRQ5     Manufacturer: Turck Banner
WORLD-BEAM Q20 Series: Receiver (Red), Range: 12 m, Input 10-30 V dc, Output: Complementary Solid-State PNP, 150 (6 in) M12 Pigtail QD

Availability On Request

£85.29
  • Photoelectric Sensor (Receiver)
  • Opposed Mode Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 12000 mm
  • Cable Length: 0.15 m, Male end
  • Cable Type: M12 × 1, 4-pin, PVC
  • Protection Class: IP67
  • LED with all-round visibility
  • PNP Switching Output
  • Changeover functionality


Product

Manufacturer Material ID -
Q20PRQ5
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
32 Millimetre
Housing material -
Plastic
Length of sensor -
20 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
12000 Millimetre
Rated switching distance -
12000 Millimetre
Reaction time -
1 Millisecond
Switching frequency -
600 Hertz
Type of electric connection -
Connector M12
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
655 Nanometre
Width sensor -
12 Millimetre
Turck Banner

Availability On Request

£85.29
