3031971

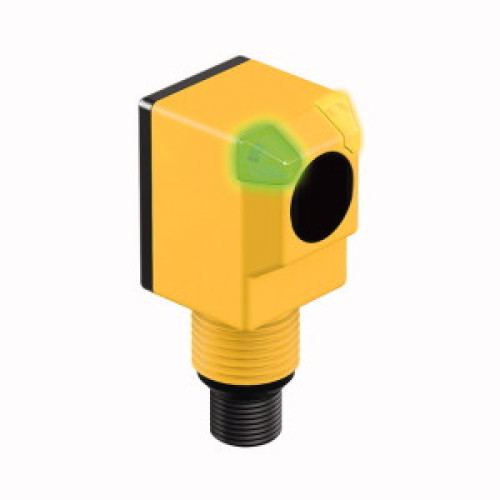

EZ-BEAM Q25 Series: Emitter, Range: 20 m, Input: 20-250 V ac, Output: Not Applicable, 4-pin Micro Integral QD

Manufacturer's No: Q253EQ1     Manufacturer: Turck Banner
EZ-BEAM Q25 Series: Emitter, Range: 20 m, Input: 20-250 V ac, Output: Not Applicable, 4-pin Micro Integral QD

Availability On Request

£116.14
  • Photoelectric sensor in Opposed Mode (Emitter)
  • Operating voltage: 20-250 VAC
  • Maximum range: 20000 mm
  • M12 × 1 male connector, 4-pin
  • Protection classes: IP67/IP69K
  • Ambient temperature: -40°C to +70°C


Product

Manufacturer Material ID -
Q253EQ1
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Diameter sensor -
18 Millimetre
Height of sensor -
62.7 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Reaction time -
16 Millisecond
Setting procedure -
Other
Type of electric connection -
Connector 1/2 inch
Type of light -
Infrared light
Wavelength of the sensor -
950 Nanometre
Width sensor -
25 Millimetre
Turck Banner

Availability On Request

£116.14
