3031972

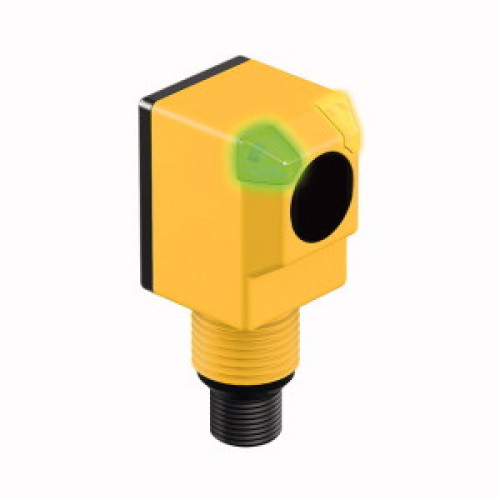

EZ-BEAM Q25 Series: Receiver, Range: 20 m, Input: 20-250 V ac, Output: SPST Solid-state Light Operate, 4-pin Micro Integral QD

Manufacturer's No: Q25AW3RQ1     Manufacturer: Turck Banner
EZ-BEAM Q25 Series: Receiver, Range: 20 m, Input: 20-250 V ac, Output: SPST Solid-state Light Operate, 4-pin Micro Integral QD

Availability On Request

£119.77
  • Photoelectric Sensor: Opposed Mode (Receiver)
  • Operating Voltage: 20-250 VAC
  • Max. Range: 20000 mm
  • Connector: M12 × 1 male, 4-pin
  • Protection Classes: IP67/IP69K
  • Ambient Temperature: -40°C to +70°C
  • Operation Modes: Selectable light/dark or light with alarm function


Product

Manufacturer Material ID -
Q25AW3RQ1
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Diameter sensor -
18 Millimetre
Height of sensor -
62.7 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Reaction time -
16 Millisecond
Sensing mode -
Light switching
Setting procedure -
Other
Switching frequency -
40 Hertz
Type of electric connection -
Connector 1/2 inch
Type of switch function -
Other
Type of switching output -
Relay contact
Width sensor -
25 Millimetre
Turck Banner

Availability On Request

£119.77
