3031965

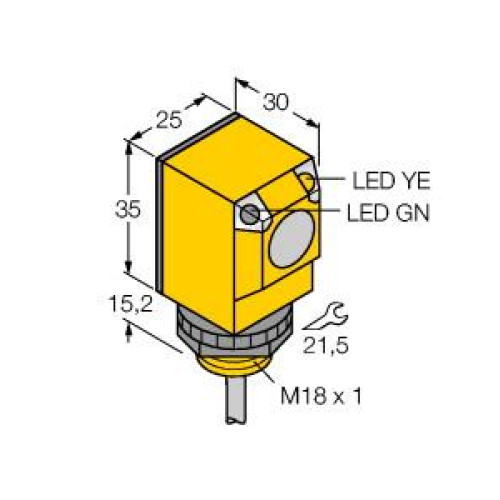

EZ-BEAM Q25 Series: Polarized Retro, Range: 2 m, Input: 20-250 V ac, Output: SPST Solid-state Dark Operate, 2 m (6.5 ft) Cable

Manufacturer's No: Q25RW3LP     Manufacturer: Turck Banner
EZ-BEAM Q25 Series: Polarized Retro, Range: 2 m, Input: 20-250 V ac, Output: SPST Solid-state Dark Operate, 2 m (6.5 ft) Cable

Availability On Request

£167.86
  • Photoelectric sensor with retroreflective design and polarizing filter
  • Operating voltage: 20-250 VAC
  • Maximum range: 2000 mm
  • Cable length: 2 m
  • Protection class: IP67
  • Ambient temperature range: -40 to +70 °C
  • Selectable light/dark operation or light operation with alarm function


Product

Manufacturer Material ID -
Q25RW3LP
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Diameter sensor -
18 Millimetre
Height of sensor -
50.2 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
16 Millisecond
Sensing mode -
Dark switching
Setting procedure -
Other
Switching frequency -
40 Hertz
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Other
Type of switching output -
Relay contact
Wavelength of the sensor -
680 Nanometre
Width sensor -
25 Millimetre
Turck Banner

Availability On Request

£167.86
