3031940

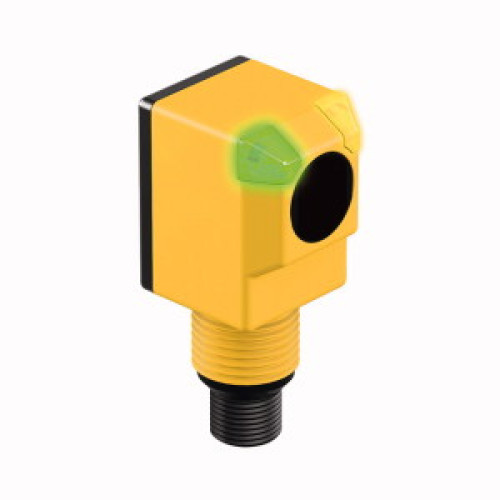

EZ-BEAM Q25 Series: Fixed Field, Range: 100, Input: 10-30 V dc, Output: Complementary NPN, 4-pin M12 Integral QD

Manufacturer's No: Q25SN6FF100Q     Manufacturer: Turck Banner
EZ-BEAM Q25 Series: Fixed Field, Range: 100, Input: 10-30 V dc, Output: Complementary NPN, 4-pin M12 Integral QD

Availability On Request

£156.07
  • Photoelectric Sensor
  • Diffuse Mode Sensor with Fixed-Field Background Suppression
  • Operating Voltage: 10-30 VDC
  • Maximum Range: 100 mm
  • Connector: M12 x 1 male, 4-pin
  • Protection Classes: IP67/IP69K
  • Ambient Temperature: -40°C to +70°C
  • NPN Switching Output, Changeover


Product

Manufacturer Material ID -
Q25SN6FF100Q
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Diameter sensor -
18 Millimetre
Height of sensor -
62.7 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
100 Millimetre
Rated switching distance -
100 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
NPN
Wavelength of the sensor -
880 Nanometre
Width sensor -
25 Millimetre
