3031936

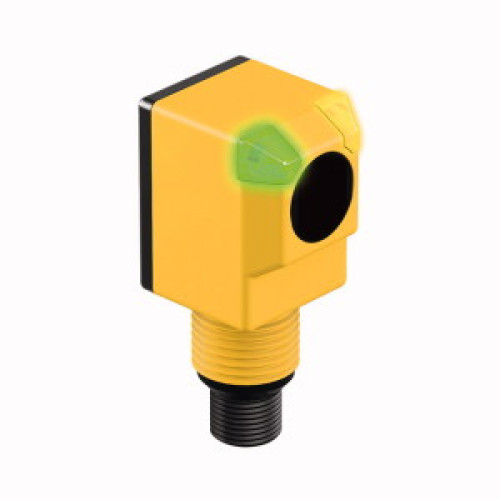

EZ-BEAM Q25 Series: Receiver, Range: 20 m, Input: 10-30 V dc, Output: Complementary NPN, 4-pin M12 Integral QD

Manufacturer's No: Q25SN6RQ     Manufacturer: Turck Banner
EZ-BEAM Q25 Series: Receiver, Range: 20 m, Input: 10-30 V dc, Output: Complementary NPN, 4-pin M12 Integral QD

Availability On Request

£96.18
  • Photoelectric Sensor, Opposed Mode Sensor (Receiver)
  • Operating voltage: 10-30 VDC
  • Max. range: 20000 mm
  • M12 × 1 male connector, 4-pin
  • Protection classes: IP67/IP69K
  • Ambient temperature: -40°C to +70°C
  • Selectable light/dark operation or light operation with alarm function
  • NPN switching output, changeover


Product

Manufacturer Material ID -
Q25SN6RQ
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Diameter sensor -
18 Millimetre
Height of sensor -
62.7 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of switch function -
Programmable/configurable
Type of switching output -
NPN
Width sensor -
25 Millimetre
Turck Banner

Availability On Request

£96.18
