17129 {B}

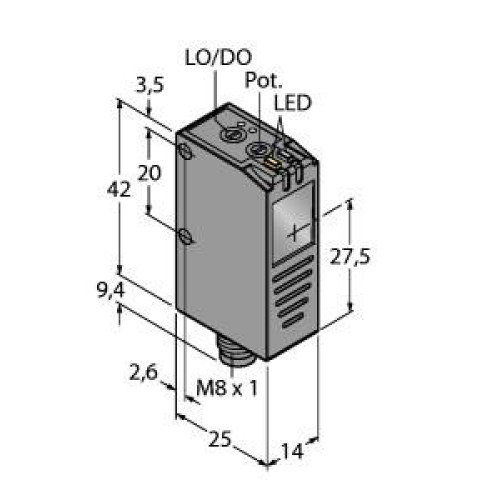

Q26 Series Clear Object Sensor, Range 0-0.8 m, Supply Voltage 12-30 V dc, Rating IP67, PNP Outputs, Coaxial Optics Visible Red LED

Manufacturer's No: Q26PXLPQ7     Manufacturer: Turck Banner
Q26 Series Clear Object Sensor, Range 0-0.8 m, Supply Voltage 12-30 V dc, Rating IP67, PNP Outputs, Coaxial Optics Visible Red LED, 4-pin M8 Integral QD

Availability Available to order

£223.26
  • Photoelectric sensor for clear object detection
  • Retroreflective sensor with polarizing filter
  • Operating voltage: 12-30 VDC
  • Max. range: 800 mm
  • Male M8 × 1, 4-pin connection
  • Protection class: IP67
  • Light or dark operation, adjustable
  • Sensitivity adjusted via potentiometer
  • Coaxial optics with reduced blind zone
  • PNP switching output

Read more

  • Switching output for insufficient excess gain


Product

Manufacturer Material ID -
Q26PXLPQ7
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
HU
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
42 Millimetre
Housing material -
Plastic
Length of sensor -
25 Millimetre
Material of optical surface -
Glass
Max. switching distance -
800 Millimetre
Rated switching distance -
800 Millimetre
Reaction time -
0.25 Millisecond
Sensing mode -
Dark switching
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
660 Nanometre
Width sensor -
14 Millimetre
