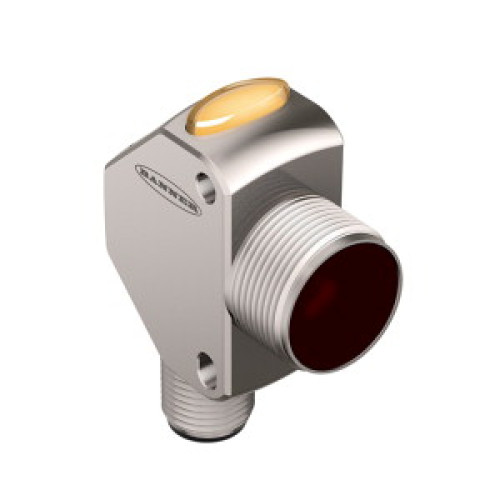

Q3XT Series: Laser Diffuse, Range: 300, Input: 10-30 V dc, Outputs: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Manufacturer's No: Q3XTBLD-Q8     Manufacturer: Turck Banner
Q3XT Series: Laser Diffuse, Range: 300, Input: 10-30 V dc, Outputs: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Availability On Request

POA
  • Type: Photoelectric Sensor, Laser Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 300 mm
  • Display: 3-digit 7-segment LED
  • Buttons: 2
  • Output Indicator: Yellow
  • Protection Rating: IP67/69K
  • Laser Class: 2, red, 655 nm (acc. to IEC 60825-1:2007)
  • Output: 1 x PNP, 1 x NPN switching output

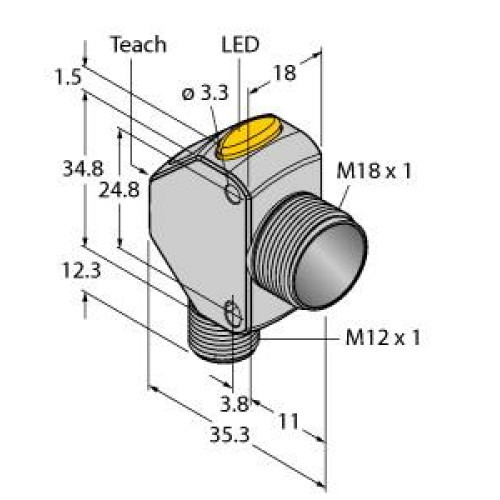

  • Design: Rectangular model with offset M18 thread

Read more

  • Housing Material: Die-cast zinc


Product

Manufacturer Material ID -
Q3XTBLD-Q8
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39121527

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
48.6 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
35.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Other
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP/NPN
Width sensor -
18 Millimetre
